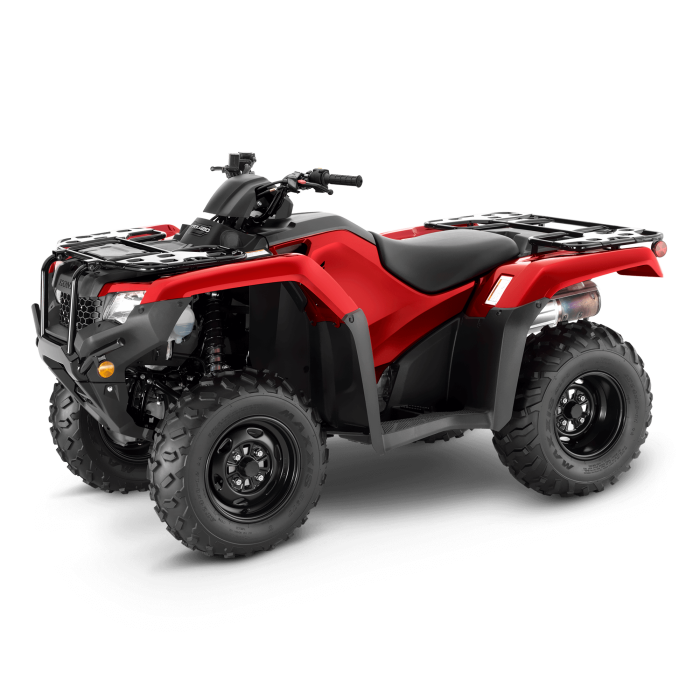

Honda TRX420TM1
$17,129.00
If you want a farm-hand that will pull its weight, and then some, this ATV is perfect for you. The TRX420TM1 is the larger-powered brother of the TRX250TM. A Honda through-and-through it is trusty, reliable, and a four-wheel worker that will do more than just drive your flat-terrain farm.
The big 420cc fuel-injected, OHV liquid-cooled engine boasts enough pulling power to tow a decent trailer or gallivant with a bit of gear. Its 5-speed manual transmission gives you excellent control, and the ability to ride exceptionally slow in first gear and reverse. That means you can follow your stock at their pace, or whatever pace you decide. Without a doubt this is one tough, no-frills Rancher, that will get more than just one job done.
Previous year model shown, current product may vary
If you want a farm-hand that will pull its weight, and then some, this ATV is perfect for you. The TRX420TM1 is the larger-powered brother of the TRX250TM. A Honda through-and-through it is trusty, reliable, and a four-wheel worker that will do more than just drive your flat-terrain farm.
The big 420cc fuel-injected, OHV liquid-cooled engine boasts enough pulling power to tow a decent trailer or gallivant with a bit of gear. Its 5-speed manual transmission gives you excellent control, and the ability to ride exceptionally slow in first gear and reverse. That means you can follow your stock at their pace, or whatever pace you decide. Without a doubt this is one tough, no-frills Rancher, that will get more than just one job done.
Previous year model shown, current product may vary
Engine
| Engine Type | Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke |
| Engine Displacement | 420 cc |
| Bore and Stroke | 86.5mm x 71.5mm |
| Ignition | Full-transistorized type with electronic advance |
| Fuel System | Programmed fuel injection (PGM-FI) |
| Cylinders | 1 |
| Valves | 4 |
Transmission
| Starter | Electric with auxiliary recoil |
| Transmission Type | Manual 5-speed with reverse |
Wheels, Suspension, Steering & Brakes
| Suspension Front | Independent double-wishbone |
| Front Wheel Travel | 170 mm |
| Suspension Rear | Solid axle swingarm with single shock |
| Rear Wheel Travel | 170 mm |
| Brakes Front | Dual hydraulic discs |
| Brakes Rear | Sealed mechanical drum |
| Tyres Size Front | 24 x 8 - 12 |
| Tyres Size Rear | 24 x 10 - 11 |
Dimensions & Height
| Wheelbase | 1268 mm |
| Ground Clearance | 183 mm |
| Seat Height | 856 mm |
| Kerb Weight | 264 kg (Includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 14.7 litres (Including 4.9 litres reserve) |
| Length | 2103 mm |
| Width | 1205 mm |
| Height | 1174 mm |
| Towing Capacity | 385 kg |
| Carrier Capactiy | 30 kg |
