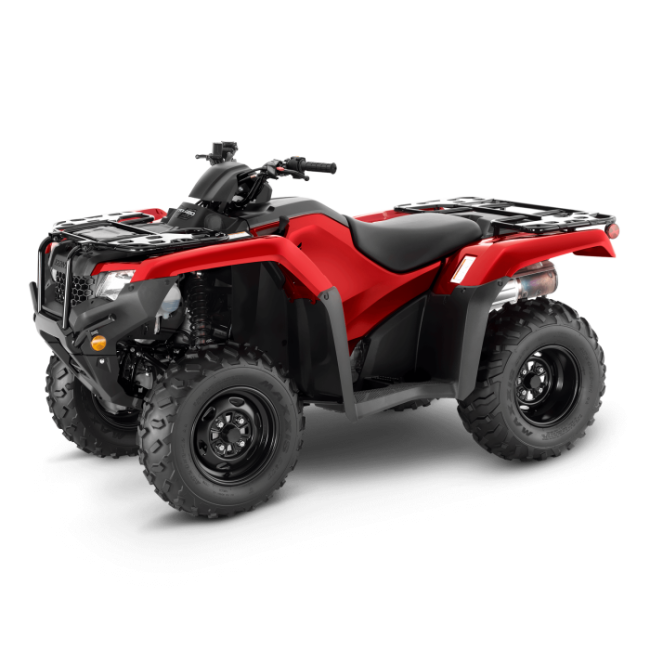

Honda TRX420FM2


Honda TRX420FM2

Hero Red
$20,004.00
$20,004.00
Skip to product information
1/2

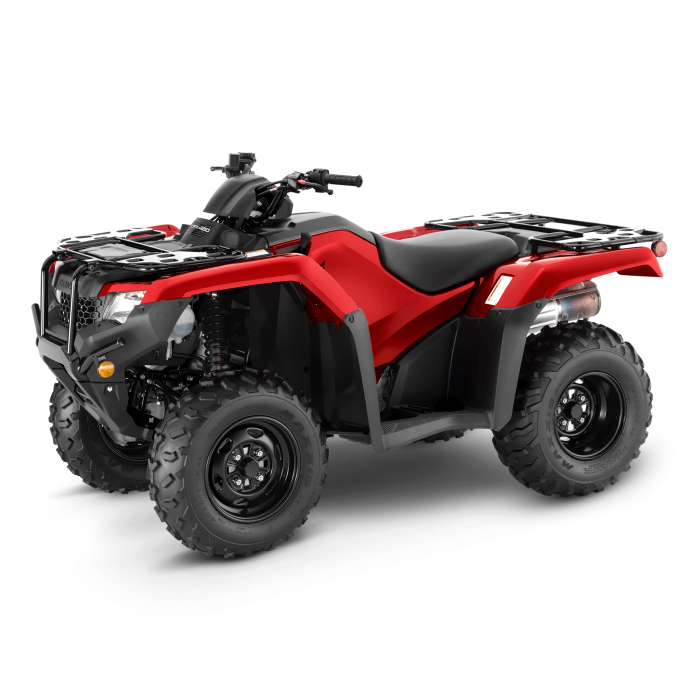

  • 7027--atv-clear-cuts-2025-trx420fm2-2000-x-2000.png
  • Honda TRX420FM2
Honda TRX420FM2

Honda TRX420FM2
$20,004.00
$20,004.00

Call or email our experts to discuss your requirements
ColourHero Red
Call us now
Email us

Description

The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason. It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating ECU mapping for improved steering response and reduced low-speed steering effort for enhanced manoeuvrability.

Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. The storage compartment on the front of the bike and carry racks provide more loading options. Guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical, and capable ATV.

Previous year model shown, current product may vary

The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason. It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating ECU mapping for improved steering response and reduced low-speed steering effort for enhanced manoeuvrability.

Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. The storage compartment on the front of the bike and carry racks provide more loading options. Guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical, and capable ATV.

Previous year model shown, current product may vary

Engine

Engine TypeLongitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement420 cc
Bore and Stroke86.5mm x 71.5mm
IgnitionFull-transistorised with electronic advance
Fuel SystemProgrammed fuel injection (PGM-FI) - 34mm throttle body
Cylinders1

Transmission

StarterElectric with auxiliary recoil
Final DriveDirect front and rear driveshafts with torque sensing front differential
Transmission TypeManual 5-speed with reverse

Wheels, Suspension, Steering & Brakes

Suspension FrontIndependent double-wishbone
Front Wheel Travel170 mm
Suspension RearSolid axle swingarm with single shock
Rear Wheel Travel170 mm
Brakes FrontDual hydraulic 190mm discs
Brakes RearSingle sealed 160mm mechanical drum
Tyres Size Front24 x 8 - 12
Tyres Size Rear24 x 10 - 11

Dimensions & Height

Wheelbase1269 mm
Ground Clearance181 mm
Seat Height854 mm
Kerb Weight286 kg
Fuel Capacity14.7 litres (Including 4.9 litres reserve)
Length2104 mm
Width1205 mm
Height1174 mm
Towing Capacity385 kg
Carrier Capactiy30 kg
Product Banner

Electronic Power Steering

The Electronic Power Steering (EPS) system uses the latest technology, incorporating Electronic Computer Unit (ECU) mapping for improved linearity in steering response and reduced low-speed steering effort for enhanced manoeuvrability. The increased kickback resistance provides better all-around steering action and control over rough terrain.

Electronic Power Steering

The Electronic Power Steering (EPS) system uses the latest technology, incorporating Electronic Computer Unit (ECU) mapping for improved linearity in steering response and reduced low-speed steering effort for enhanced manoeuvrability. The increased kickback resistance provides better all-around steering action and control over rough terrain.

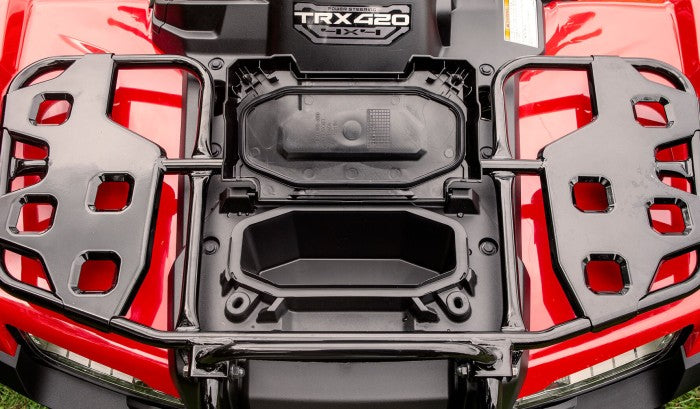

The 1.9 litre weatherproof utility box on the 420cc and 520cc ATV ranges provides extra weathertight storage for the important things that need to get around the farm dry. Whether it's your phone, lunch, or tools, the utility box is your ally against the elements.

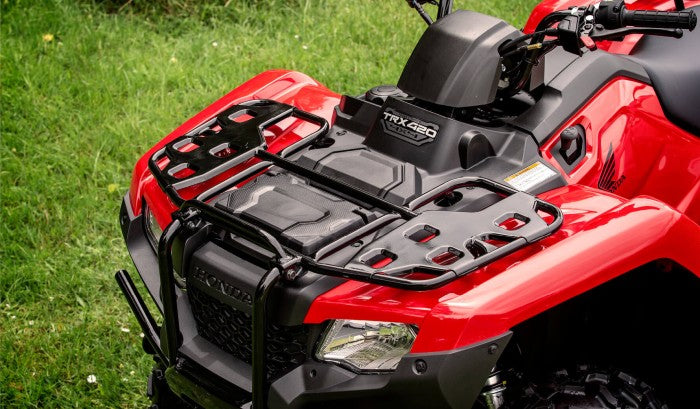

The front and rear heavy duty carry racks provide a stable platform to help carry the dogs, gear, tools, and materials you need to get around the farm without a fuss. Even on difficult terrain. They also accept the Honda Pro-Connect accessories for smooth integration.

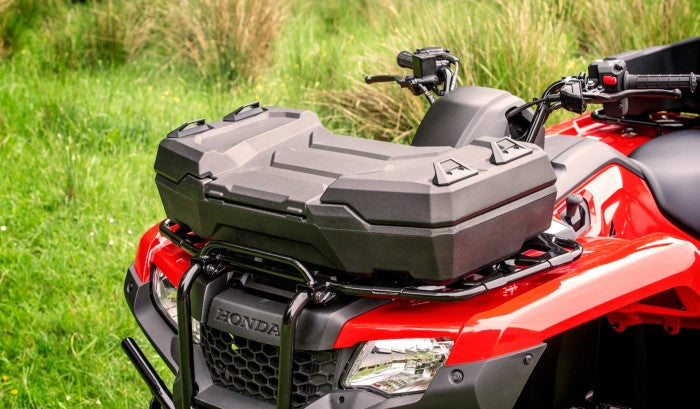

Don't get caught without the tools you need to get the job done! The Pro-Connect system provides a range of accessories designed for precise fit, simple attachment with quick-connection latch system, and integrated function.
