Honda Pioneer 1000-5P Trail


Honda Pioneer 1000-5P Trail

Black Forest Green
$46,569.00
$46,569.00
Skip to product information
1/2

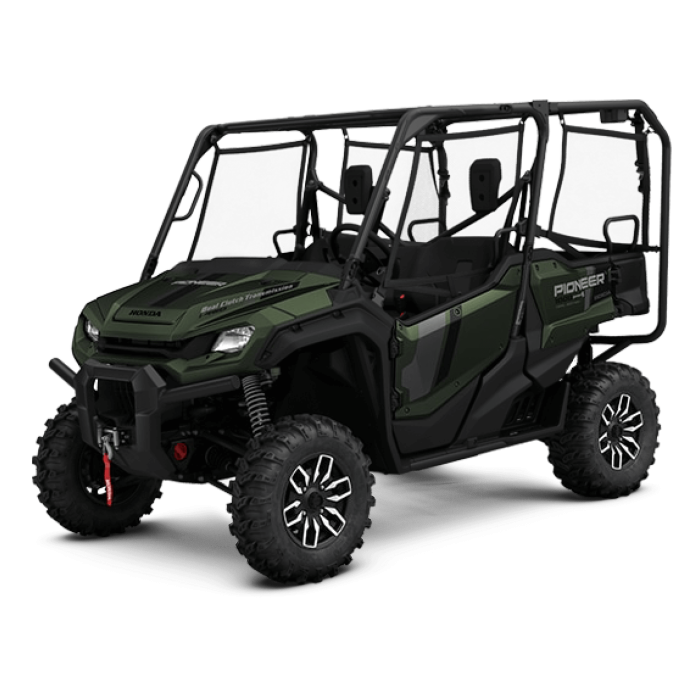

  • 6885--pioneer-1000-5p-clear-cuts-trail-black-forest-green-2000-x-2000-1.png
  • 6886--pioneer-1000-5p-clear-cuts-trail-black-forest-green-2000-x-2000-1.png
Honda Pioneer 1000-5P Trail

Honda Pioneer 1000-5P Trail
$46,569.00
$46,569.00

Call or email our experts to discuss your requirements
ColourBlack Forest Green
Call us now
Email us

Description

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. The Trail edition features a range of extras including Warn winch, Fox suspension, i-4WD and more.

A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces. And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.

Overseas model shown. Talk to Ericksen Honda for current colours available.

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. The Trail edition features a range of extras including Warn winch, Fox suspension, i-4WD and more.

A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces. And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.

Overseas model shown. Talk to Ericksen Honda for current colours available.

Engine

Engine TypeLongitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke
Engine Displacement999 cc
Bore and Stroke92.0mm x 75.15mm
Compression Ratio10:1
IgnitionFull-transistorized type with electronic advance
Fuel SystemProgrammed fuel injection (PGM-FI) - 44mm throttle body
Cylinders2
Valves8

Transmission

StarterElectric
GearboxSteel gears
Final DriveDirect front and rear driveshafts
Transmission Type6-Speed Automatic Dual Clutch Transmission (DCT)
Drive ModesTraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission

Wheels, Suspension, Steering & Brakes

Suspension FrontIndependent double-wishbone
Front Wheel Travel266 mm
Suspension RearIndependent double-wishbone
Rear Wheel Travel254 mm
Brakes FrontDual hydraulic 210mm discs
Brakes RearDual hydraulic 210mm discs
Tyres Size Front27 x 9 - 14
Tyres Size Rear27 x 11 - 14
Steering TypeElectric power steering with return to centre
Adjustable SteeringTilting steering wheel

Dimensions & Height

Wheelbase2037 mm
Ground Clearance312 mm
Seat Height859 mm
Kerb Weight806 kg (Includes all standard equipment, required fluids and full tank of fuel.)
Fuel Capacity29.9 litres (Including 6.4 litres reserve)
Length3027 mm
Width1600 mm
Height1943 mm
Towing Capacity1134 kg
Minimum Turning Radius4207 m
Rear Carrier Capacity454 kg (With hydraulic assist lever (accessible from cab or outside))

Trail Edition Features

The Trail Edition comes with a range of extras including i-4WD for smarter traction in slippery conditions, a Warn VRX 45 winch, a rearview mirror and interior light, black aluminium wheels with contrast-cut highlights, and a FOx QS-3 Quick Adjust system.

Trail Edition Features

The Trail Edition comes with a range of extras including i-4WD for smarter traction in slippery conditions, a Warn VRX 45 winch, a rearview mirror and interior light, black aluminium wheels with contrast-cut highlights, and a FOx QS-3 Quick Adjust system.

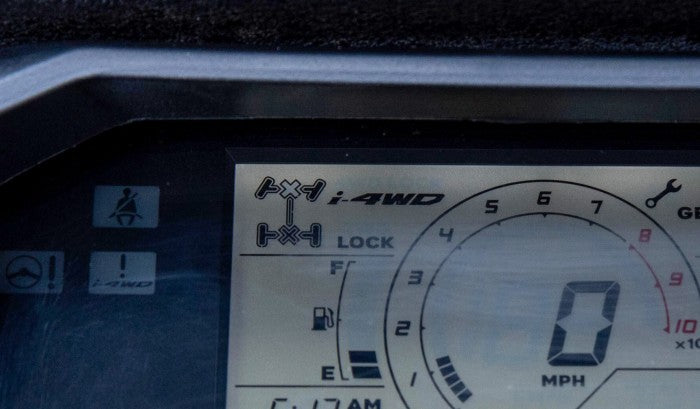

Our exclusive i-4WD system. Think “I” for “Intelligent,” because that’s exactly what it is. An industry-first brake-traction control system for side-by-sides, it simplifies operation, increases drivability, and optimises traction. Using proven, advanced technology from the Honda automotive division, you get the benefits associated with a locked front differential with none of the downsides. That means it maintains front-wheel traction even if one wheel wants to spin on ice or mud or if it’s in a hole. But at the same time, you get the lighter steering, better tracking at high speeds, tighter turning radius, and reduced kickback associated with unlocked front differentials.

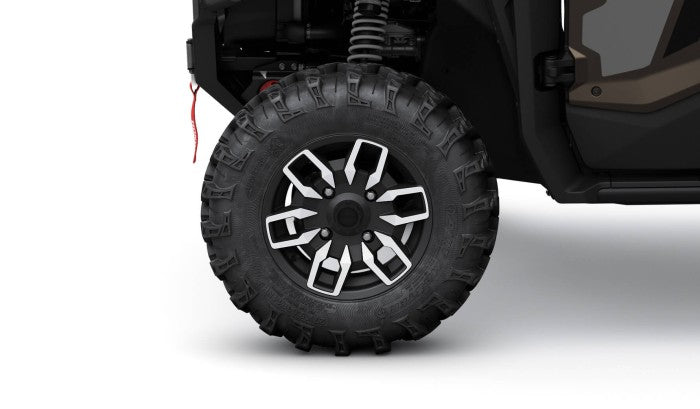

The Pioneer 1000 Trail Edition gets 14-inch black aluminum wheels with contrast-cut highlights.

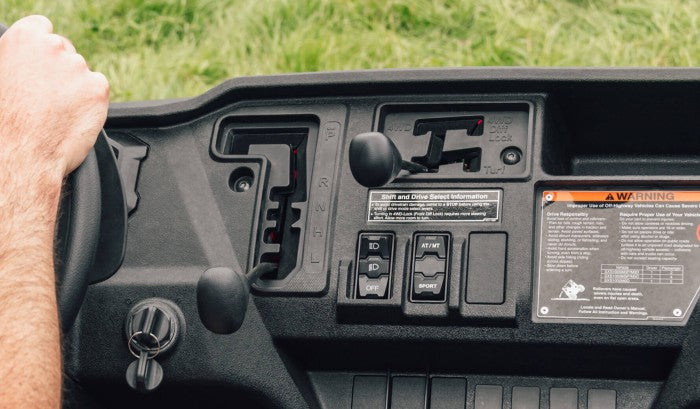

Drive the way you want, with the industry’s first and only all gear-driven six-speed Dual Clutch Transmission. Choose between manual mode or fully automatic. Plus, the addition of Sport Mode increases the fun, shifting at higher RPM for a spirited, full-performance driving experience.
