Honda Pioneer 1000-3P Deluxe

Honda Pioneer 1000-3P Deluxe

Honda Pioneer 1000-3P Deluxe

$39,669.00
Skip to product information
Honda Pioneer 1000-3P Deluxe
  • Honda Pioneer 1000-3P Deluxe
Honda Pioneer 1000-3P Deluxe

Honda Pioneer 1000-3P Deluxe
$39,669.00

Call or email our experts to discuss your requirements
Call us now
Email us

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility, and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Added Deluxe features like alloy wheels further enhance your experience.

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility, and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Added Deluxe features like alloy wheels further enhance your experience.

Engine

Engine TypeLongitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke
Engine Displacement999 cc
Bore and Stroke92.0mm x 75.15mm
Compression Ratio10:1
IgnitionFull-transistorized type with electronic advance
Fuel SystemProgrammed fuel injection (PGM-FI) - 44mm throttle body
Cylinders2
Valves6

Transmission

StarterElectric
GearboxSteel gears
Final DriveDirect front and rear driveshafts
Transmission Type6-Speed Automatic Dual Clutch Transmission (DCT)
Drive ModesTraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission

Wheels, Suspension, Steering & Brakes

Suspension FrontIndependent double-wishbone
Suspension RearIndependent double-wishbone
Brakes FrontDual hydraulic 210mm discs
Brakes RearDual hydraulic 210mm discs
Tyres Size Front27 x 9 - 14
Tyres Size Rear27 x 11 - 14
Steering TypeElectric power steering with return to centre
Adjustable SteeringTilting steering wheel

Dimensions & Height

Wheelbase2037 mm
Ground Clearance328 mm
Seating Capacity3
Kerb Weight777 kg
Fuel Capacity29.9 litres (Including 6.4 litres reserve)
Length2961 mm
Width1598 mm
Height1938 mm
Towing Capacity1134 kg
Rear Carrier Capacity454 kg (With hydraulic assist lever (accessible from cab or outside))
Product Banner

Deluxe Features

The PioneerOs uncompromising power helps take you further than ever before. The reliable disc brakes help you stop on a dime. Built to the same standard as you'd find in our autos, the four-wheel disc brakes help minimise debris build up, ensuring consistent performance and giving you confidence on the farm or trail.

Deluxe Features

The PioneerOs uncompromising power helps take you further than ever before. The reliable disc brakes help you stop on a dime. Built to the same standard as you'd find in our autos, the four-wheel disc brakes help minimise debris build up, ensuring consistent performance and giving you confidence on the farm or trail.

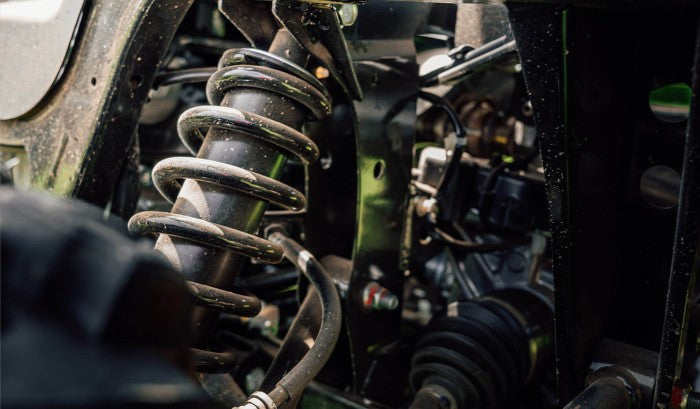

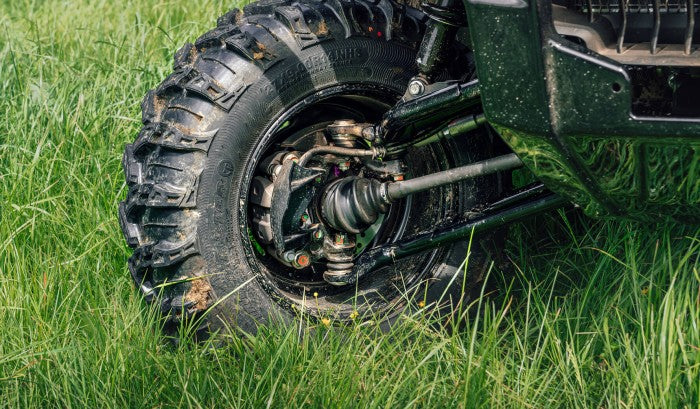

Dual A-arm suspension gives you 266mm of travel in the front and 254mm in the rear. Pair that with stellar ground clearance, and you maximise available traction and superior comfort maneuvering over terrain other side-by-sides would shy away from.

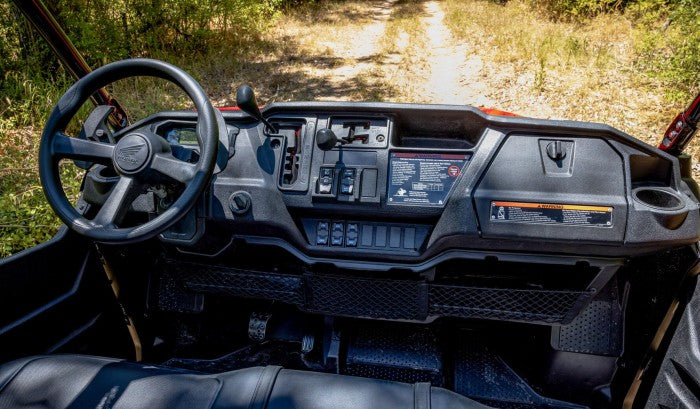

Updated dashboard offers better control at your fingertips to select the right driving mode, control gears, and switch between 2WD and 4WD. All the essential data is fed back to you via the easy to read LCD screen, and there's dual cup holders to bring the coffee along on the cold mornings.

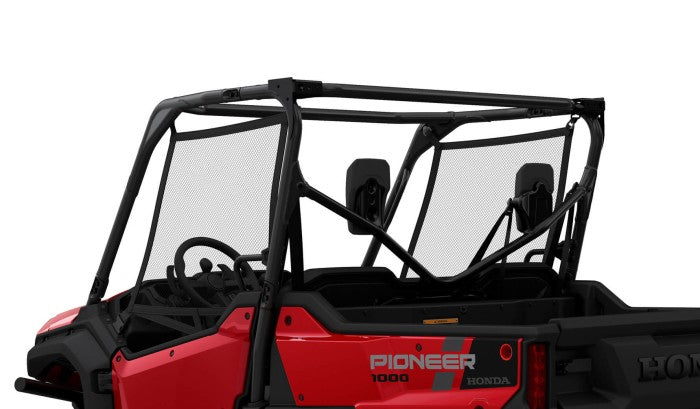

Staying safe is essential, both at work and when having fun. ThatOs why the Pioneer 1000 is equipped with an Occupant Protection Structure, using large-diameter tubing and meeting the ISO rollover protection standard. Plus, we increased the tubing thickness to make it even stronger, and gave the structure new hip bars to make getting in and out easier. In the cabin, integrated handrails, recessed top tubes, and automotive-style three-point seatbelts with emergency locking retractors help keep passengers securely in place.
