Description

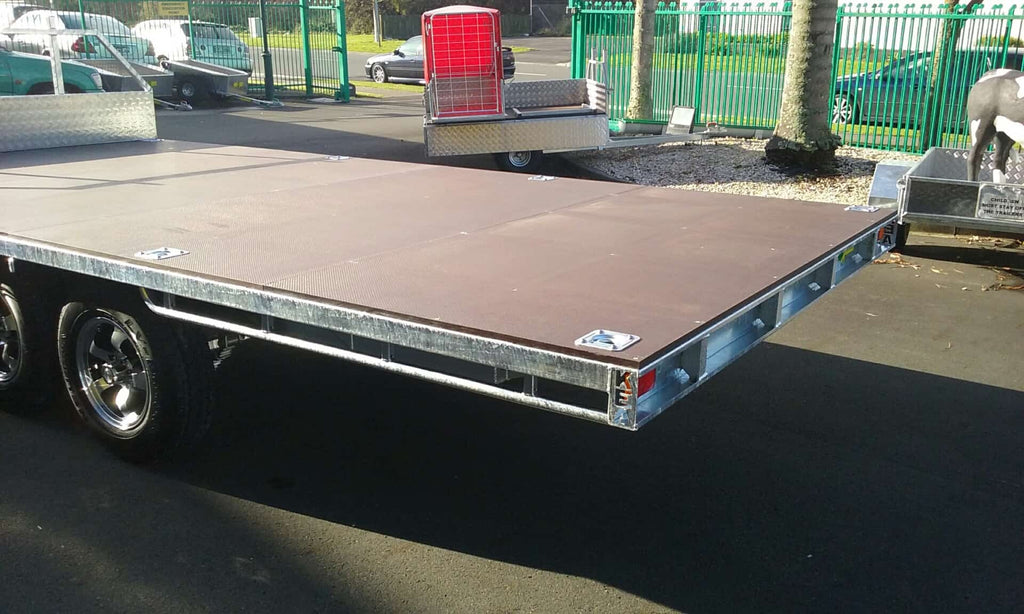

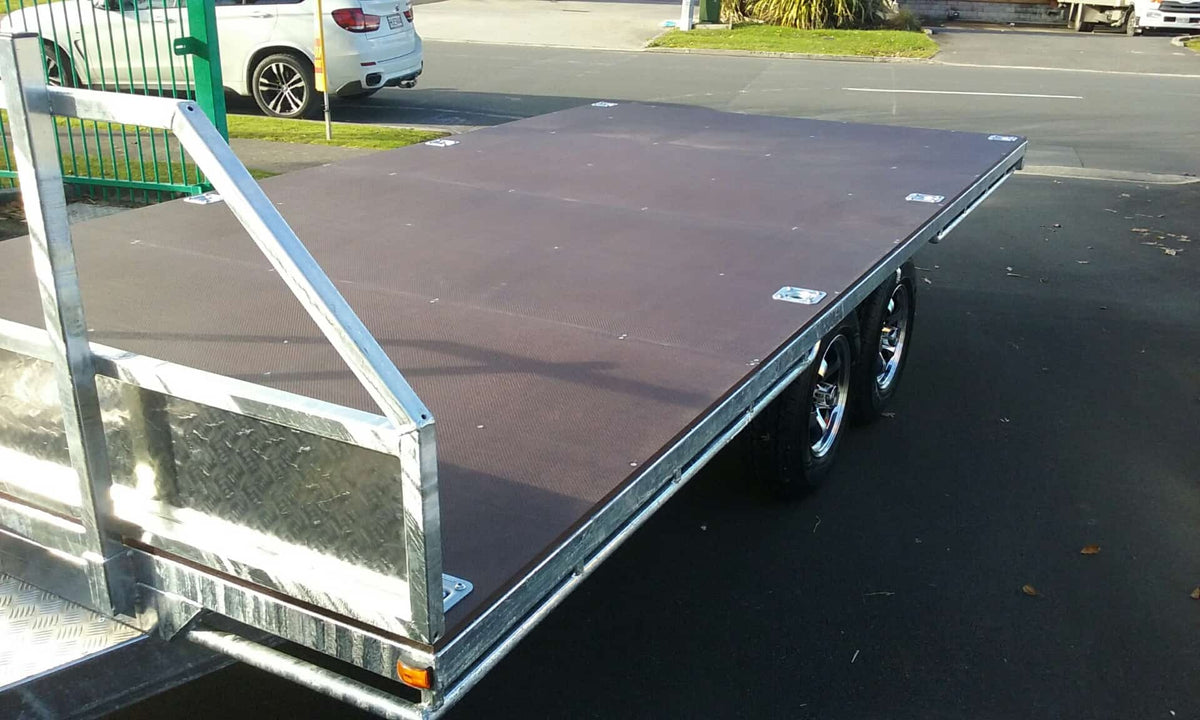

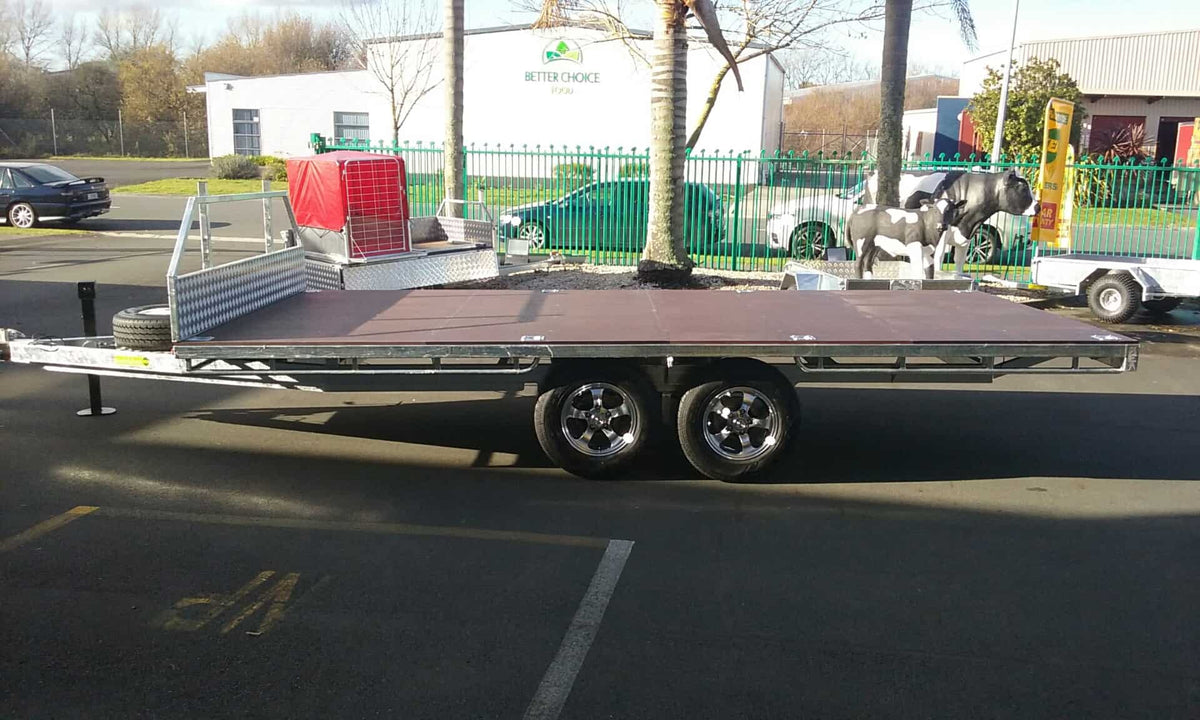

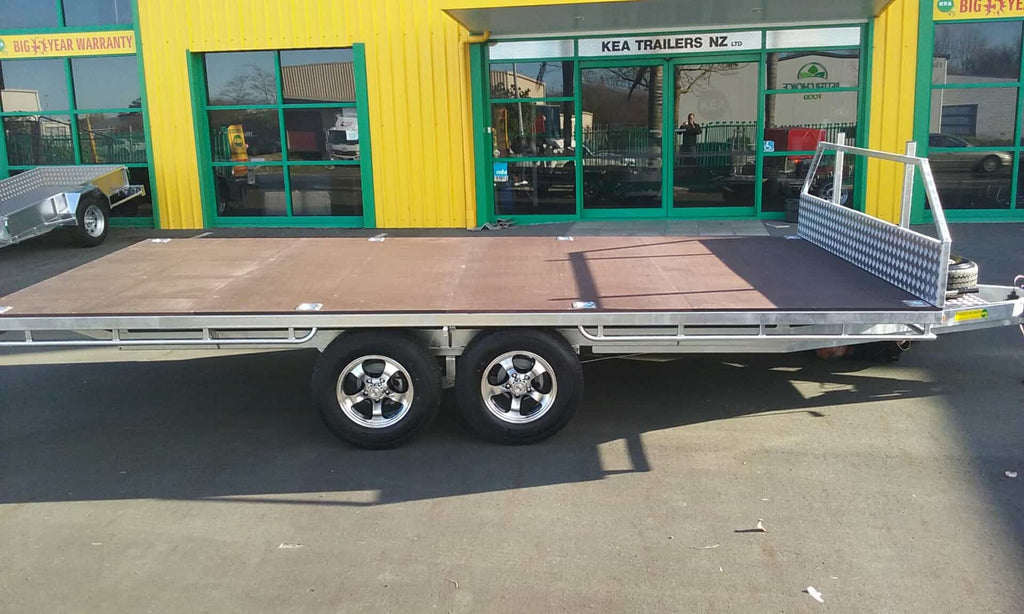

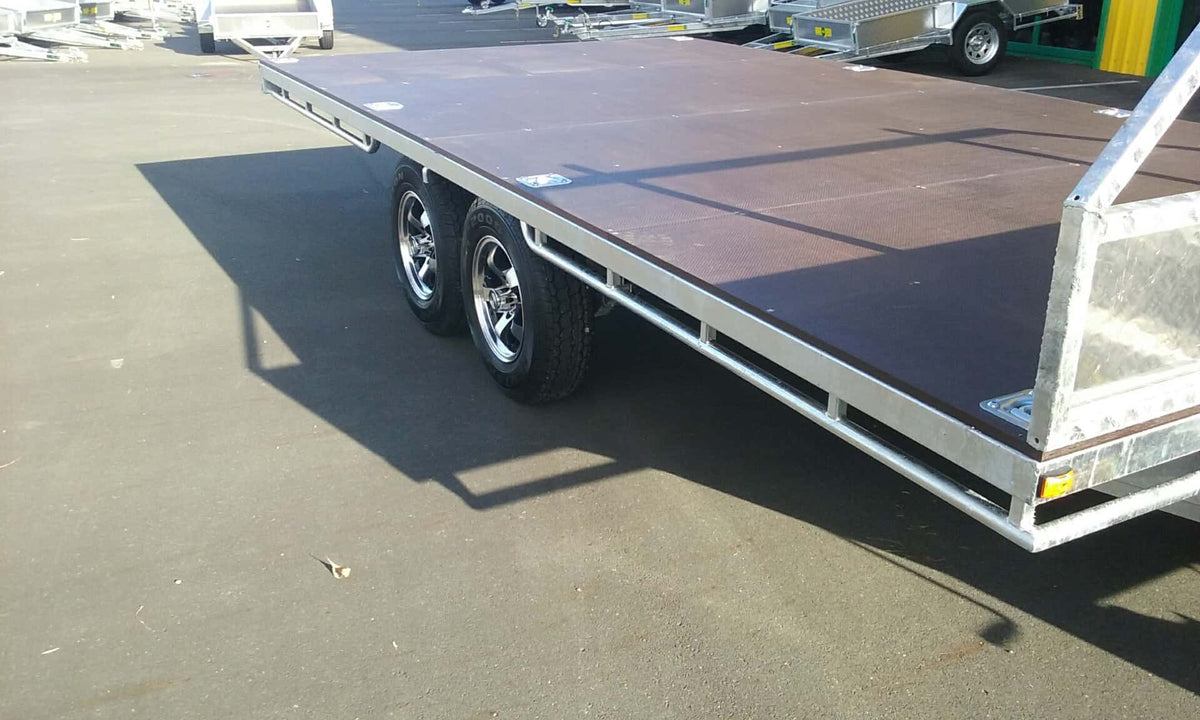

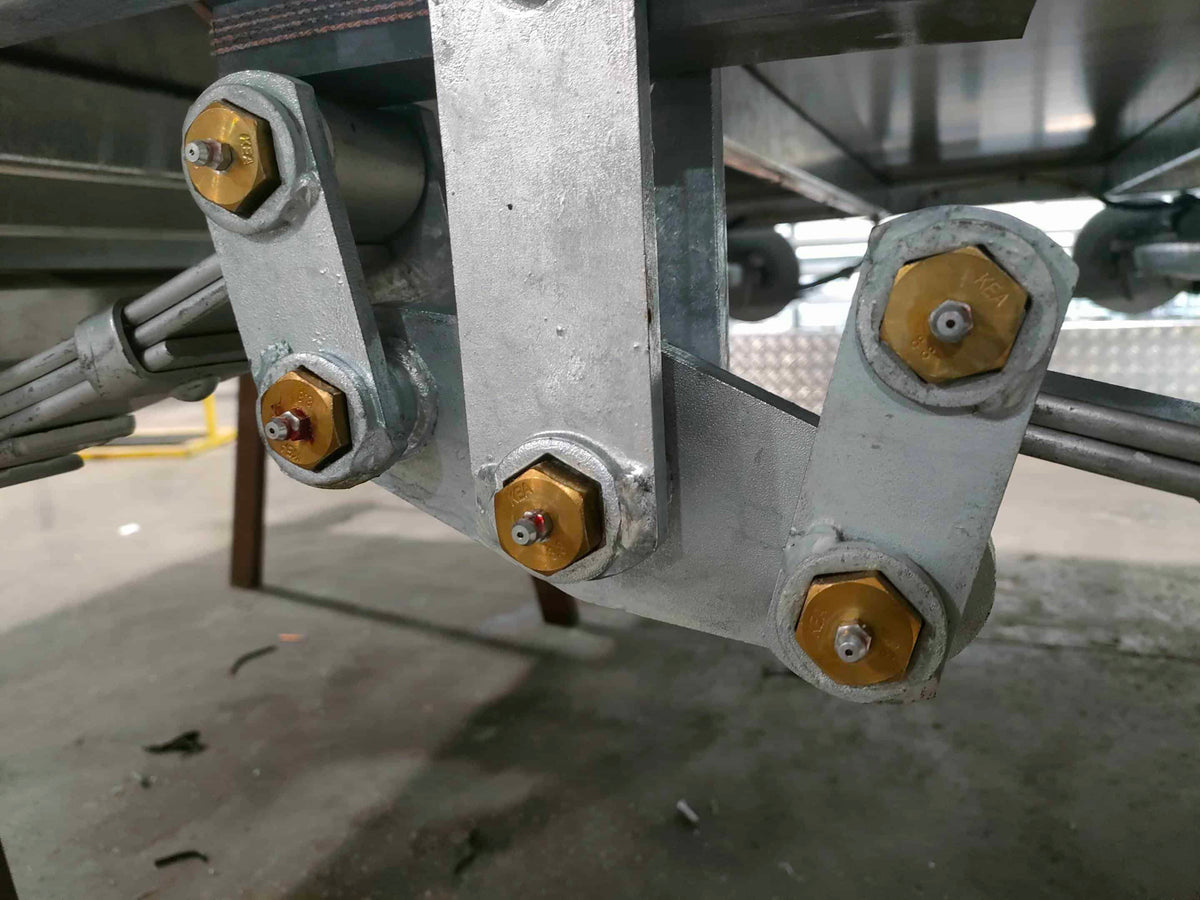

The flat decks trailers are designed for builders, hire centres, orchardists, machinery dealers, building material retailers, roofing contractors in fact anyone needing a large deck area trailer that can be loaded with a fork lift. Includes double eye, nylon bushed, 5 leaf springs on compensating tandem axle suspension. All moving parts are nylon bushed for reduced maintenance and have unique KEA bolts with grease nipples on all moving parts. Link plates and rocker hangers are fitted with hexagon washers to prevent the lubricated bolts from turning and reducing wear on these parts. All these components, including springs are galvanised.
The KC1678 at 2500Kg GVM comes with hydraulic single axle override disc brake system and a double safety chain. Fitted with 195/50-13” 8 ply, and braked Jockey Wheel.

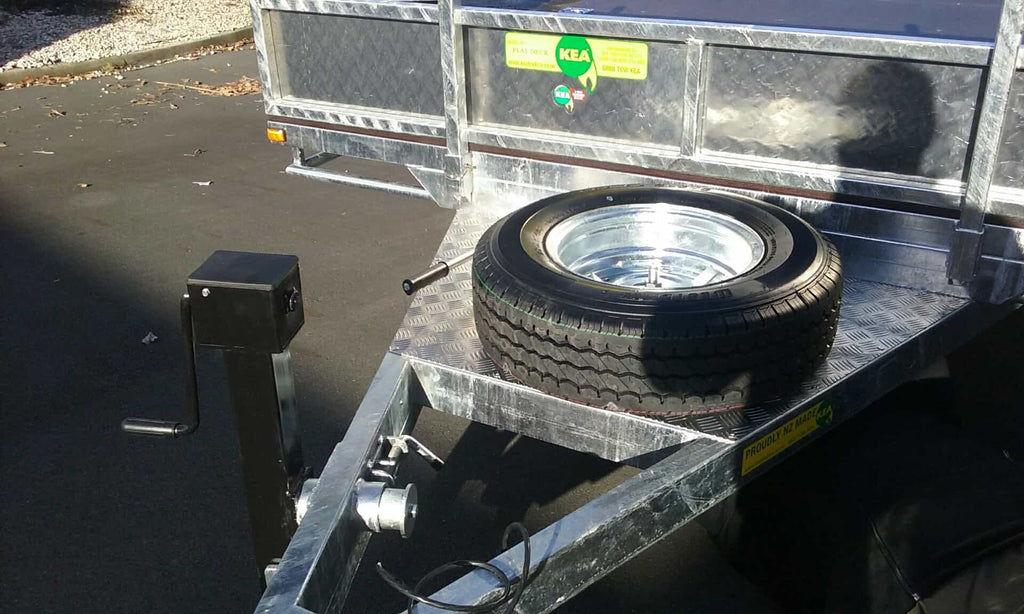

The KC1678 at 3500Kg GVM is fitted with 195R14C tyres with both axles hydraulic braked using a multivolt credo brake away system and wireless cabin remote. Heavy-duty drawbar Jack stand included.
Optional Extras:

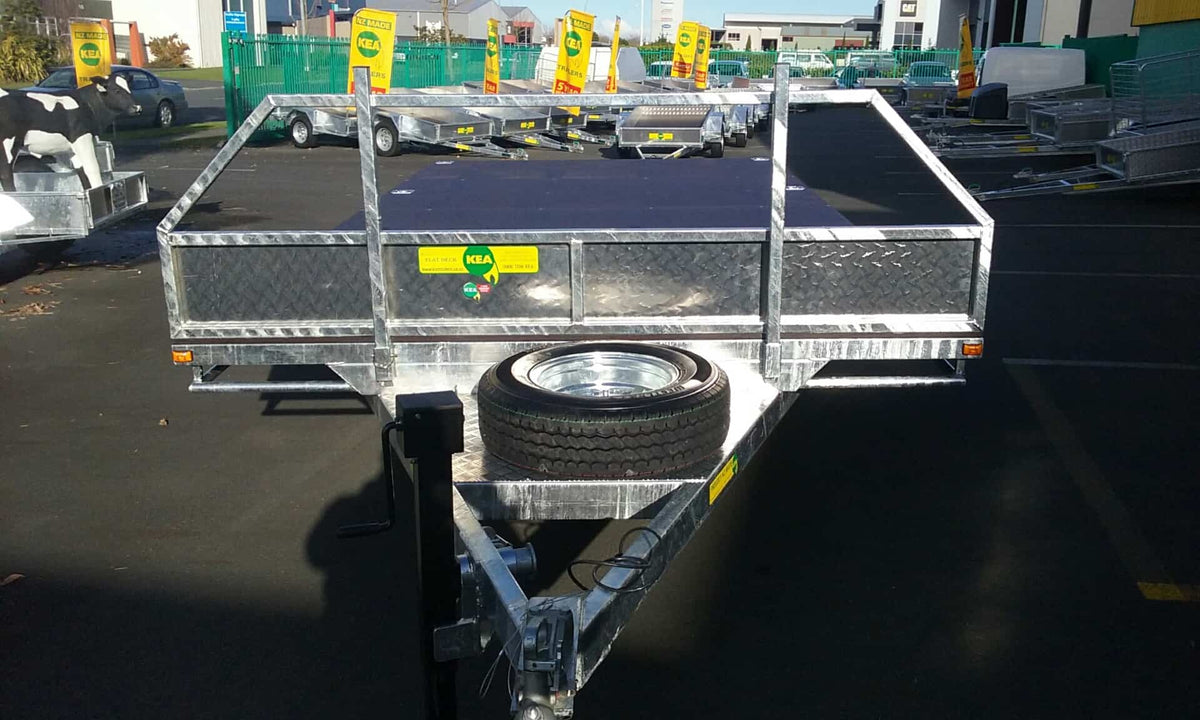

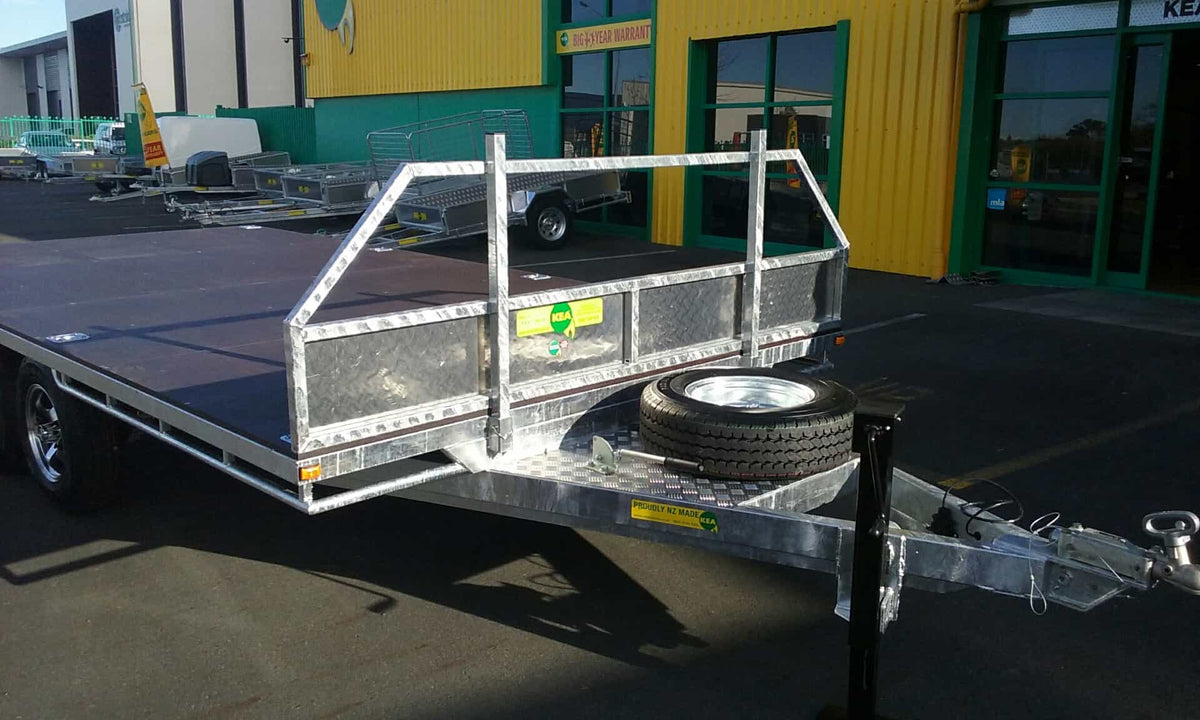

Fold-down sides and Drop in Headboard
Fixed Headboard only
Folding Headboard Only
100% New Zealand made by Kea Trailers
Kea have been building trailers in Hamilton for more than 40 years. Every chassis is made in-house and hot dip galvanised locally, with nylon-bushed, greaseable moving parts so it keeps working for decades. Kea back every trailer with a 5 year warranty.
Features
- All chassis are manufactured completely in Hamilton, New Zealand
- The chassis are all hot dip galvanised locally

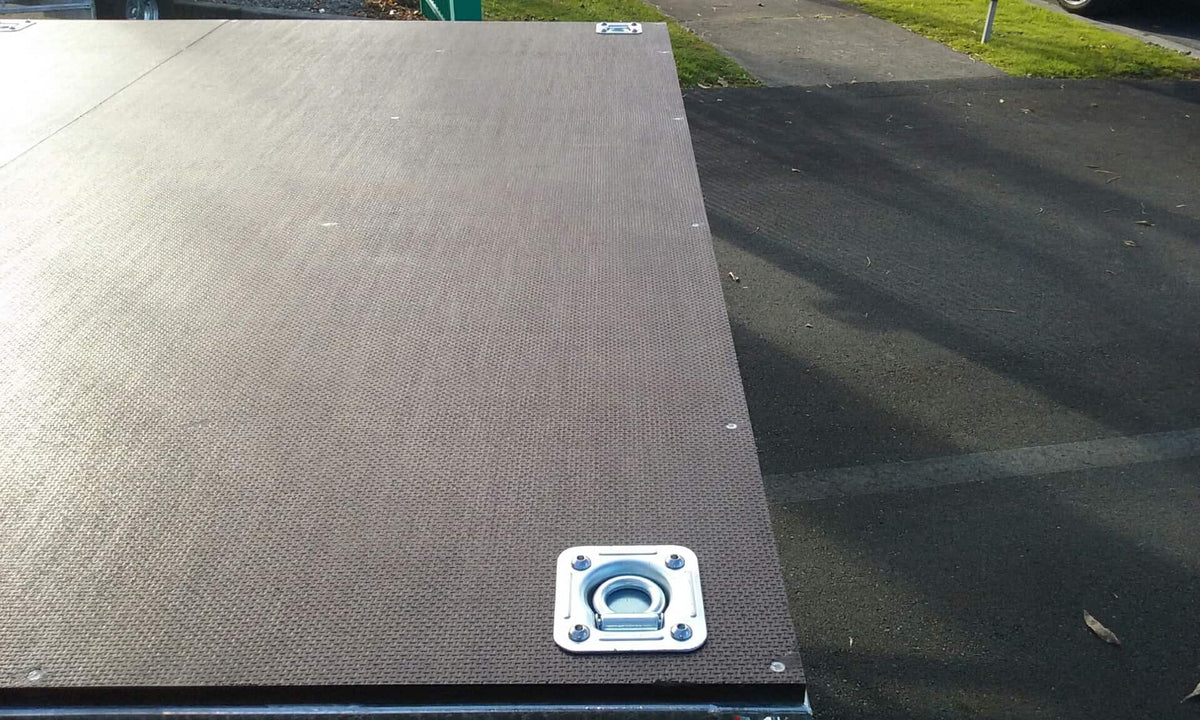

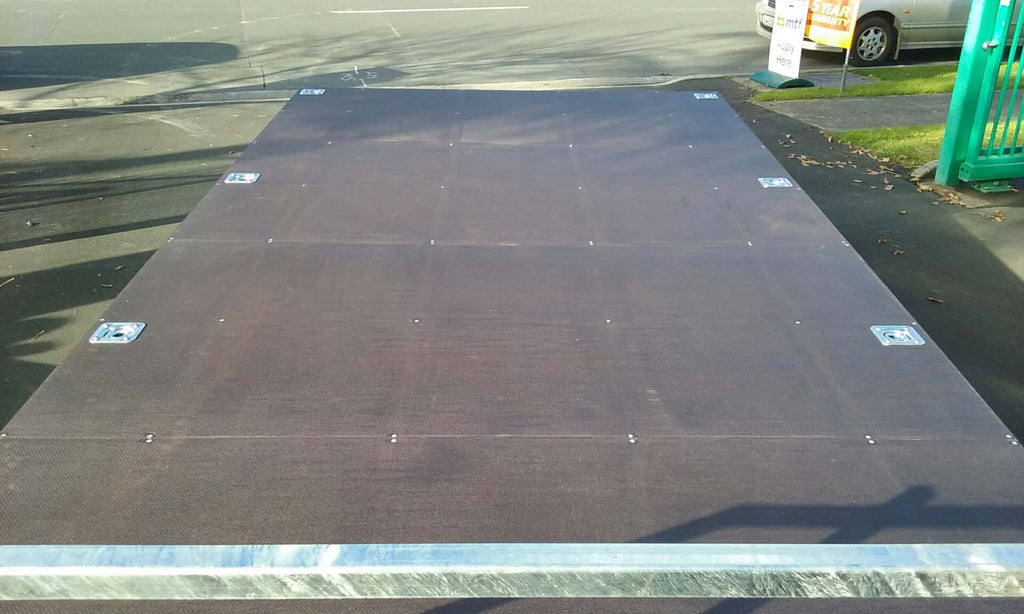

- Available with hardwood transportation ply decking.
- Unique KEA bolts with grease nipples on all moving parts
- Sturdy tie down rail fitted to both sides and front

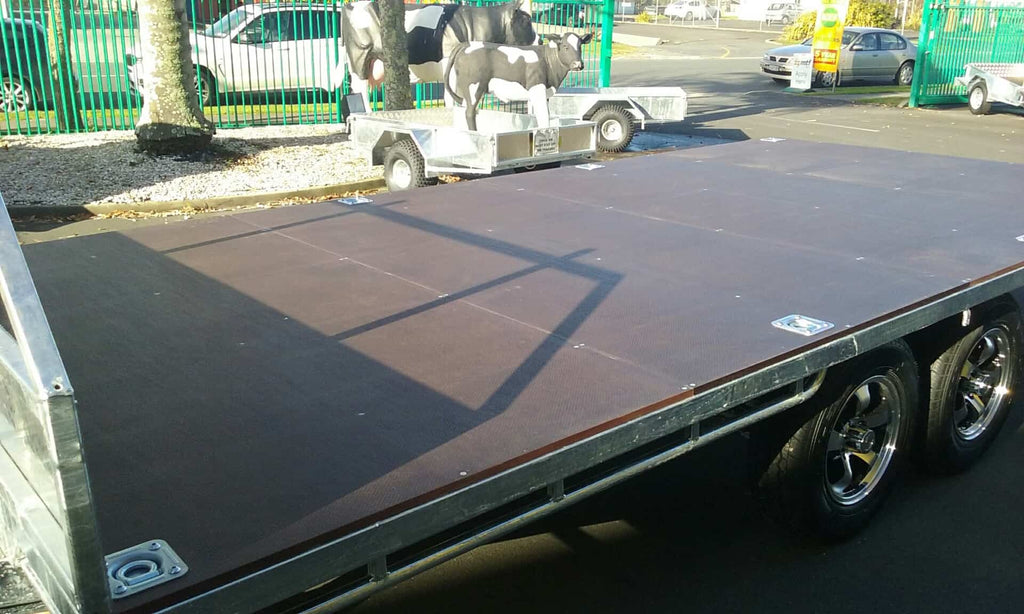

- Low flat deck height
- Fitted with 13″ low profile 8 ply radial tyres (unless 3500kg GVM)
- Fully welded construction
- Mitred corners on chassis
- Wiring loom runs inside drawbar and chassis through wiring grommets
- Nylon bushed springs fitted with an anti-rattle hangar
- Stainless steel D-shackles
- Plug holder & B4 plug fitted (Round plugs also available upon request)
- Heavy-Duty electroplated steel safety chains
- Duo-fit coupling fits both 1 7/8” and 50mm tow balls
- Multi-volt sealed LED Lights fitted
- Lamps fitted within the rear channel at the full width of the trailer for clear visibility
- Premium, Marine sealed Japanese bearings
Some photos may show optional extras.
