Honda Pioneer 1000-5P
$41,164.00
Skip to product information

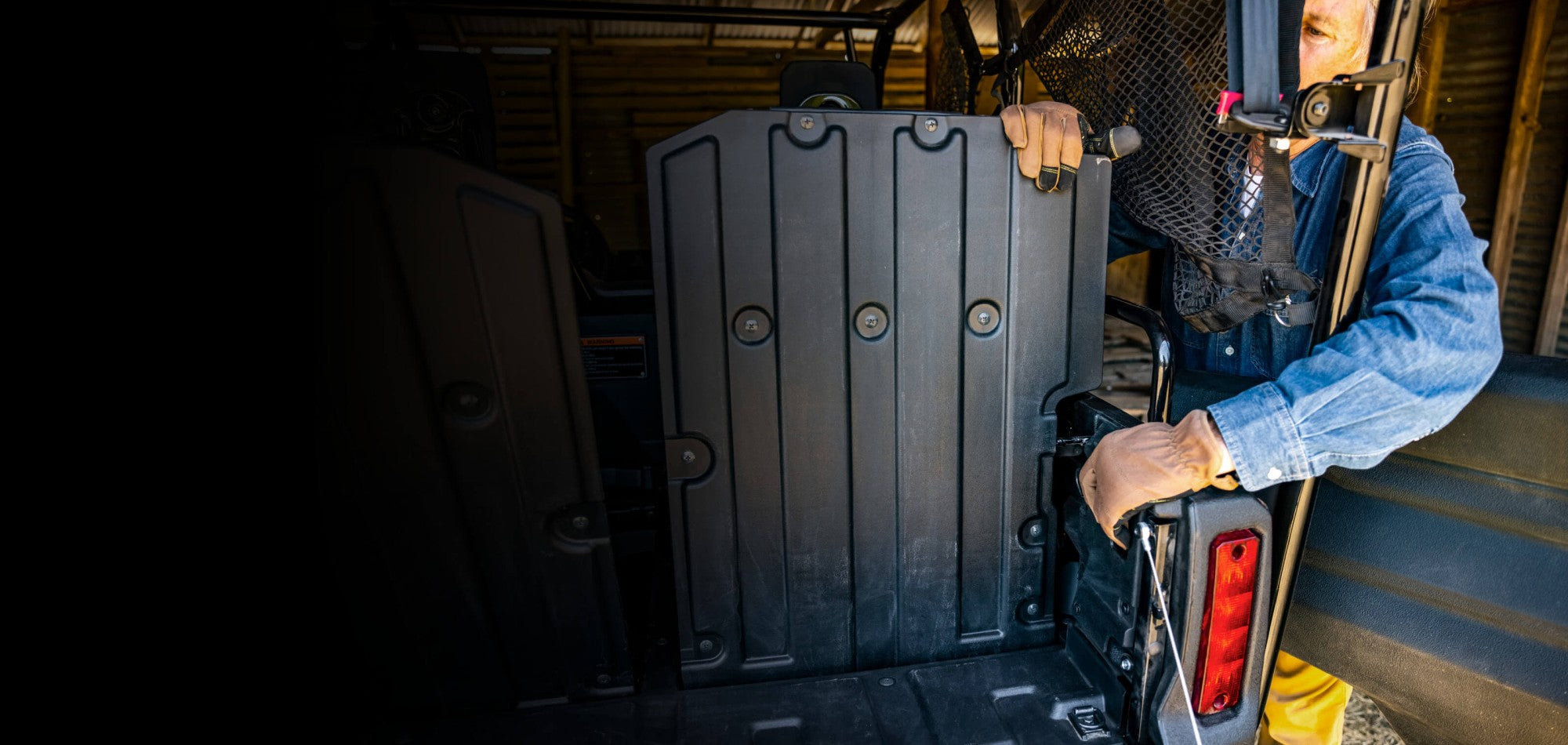

Our Pioneer 1000-5 models include Honda QuickFlip® seating in the bed, letting you instantly switch from a fold-flat bed configuration to comfortable passenger seating.
From the 450kg hauling to the 1100kg+ towing capacity, it is designed to take what you need to where you need it. Choose from 3, 4, or 5 seats depending on what your situation requires. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces.
And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.
Our Pioneer 1000-5 models include Honda QuickFlip® seating in the bed, letting you instantly switch from a fold-flat bed configuration to comfortable passenger seating.
From the 450kg hauling to the 1100kg+ towing capacity, it is designed to take what you need to where you need it. Choose from 3, 4, or 5 seats depending on what your situation requires. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces.
And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.
Engine
| Engine Type | Longitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke |
| Engine Displacement | 999 cc |
| Bore and Stroke | 92.0mm x 75.15mm |
| Compression Ratio | 10:1 |
| Ignition | Full-transistorized type with electronic advance |
| Fuel System | Programmed fuel injection (PGM-FI) - 44mm throttle body |
| Cylinders | 2 |
| Valves | 8 |
Transmission
| Starter | Electric |
| Gearbox | Steel gears |
| Final Drive | Direct front and rear driveshafts |
| Transmission Type | 6-Speed Automatic Dual Clutch Transmission (DCT) |
| Drive Modes | TraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission |
Wheels, Suspension, Steering & Brakes

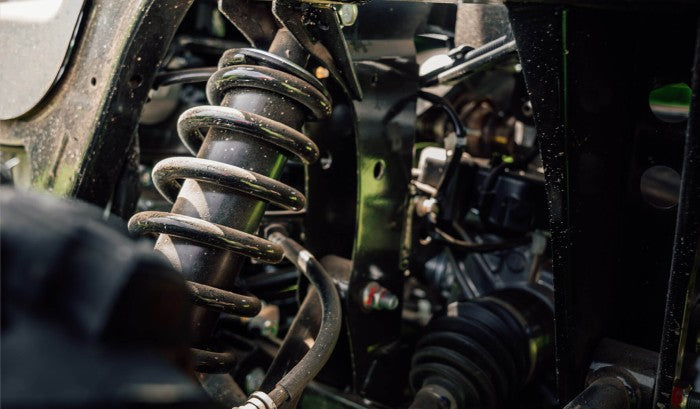

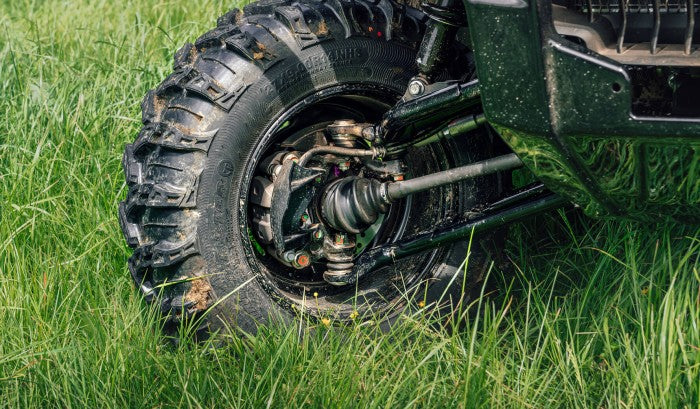

| Suspension Front | Independent double-wishbone |
| Front Wheel Travel | 267 mm |
| Suspension Rear | Independent double-wishbone |
| Rear Wheel Travel | 254 mm |
| Brakes Front | Dual hydraulic 210mm discs |
| Brakes Rear | Dual hydraulic 210mm discs |
| Tyres Size Front | 27 x 9 - 14 |
| Tyres Size Rear | 27 x 11 - 14 |
| Steering Type | Electric power steering with return to centre |
| Adjustable Steering | Tilting steering wheel |
Dimensions & Height
| Wheelbase | 2037 mm |
| Ground Clearance | 335 mm |
| Seat Height | 871 mm |
| Seating Capacity | 5 |
| Kerb Weight | 780 kg |
| Fuel Capacity | 29.9 litres (including 6.4 litres reserve) |
| Length | 2969 mm |
| Width | 1595 mm |
| Height | 1963 mm |
| Towing Capacity | 1134 kg |
| Rear Carrier Capacity | 454 kg (With hydraulic assist lever (accessible from cab or outside)) |
