Honda Pioneer 1000-3P
$38,519.00
Skip to product information

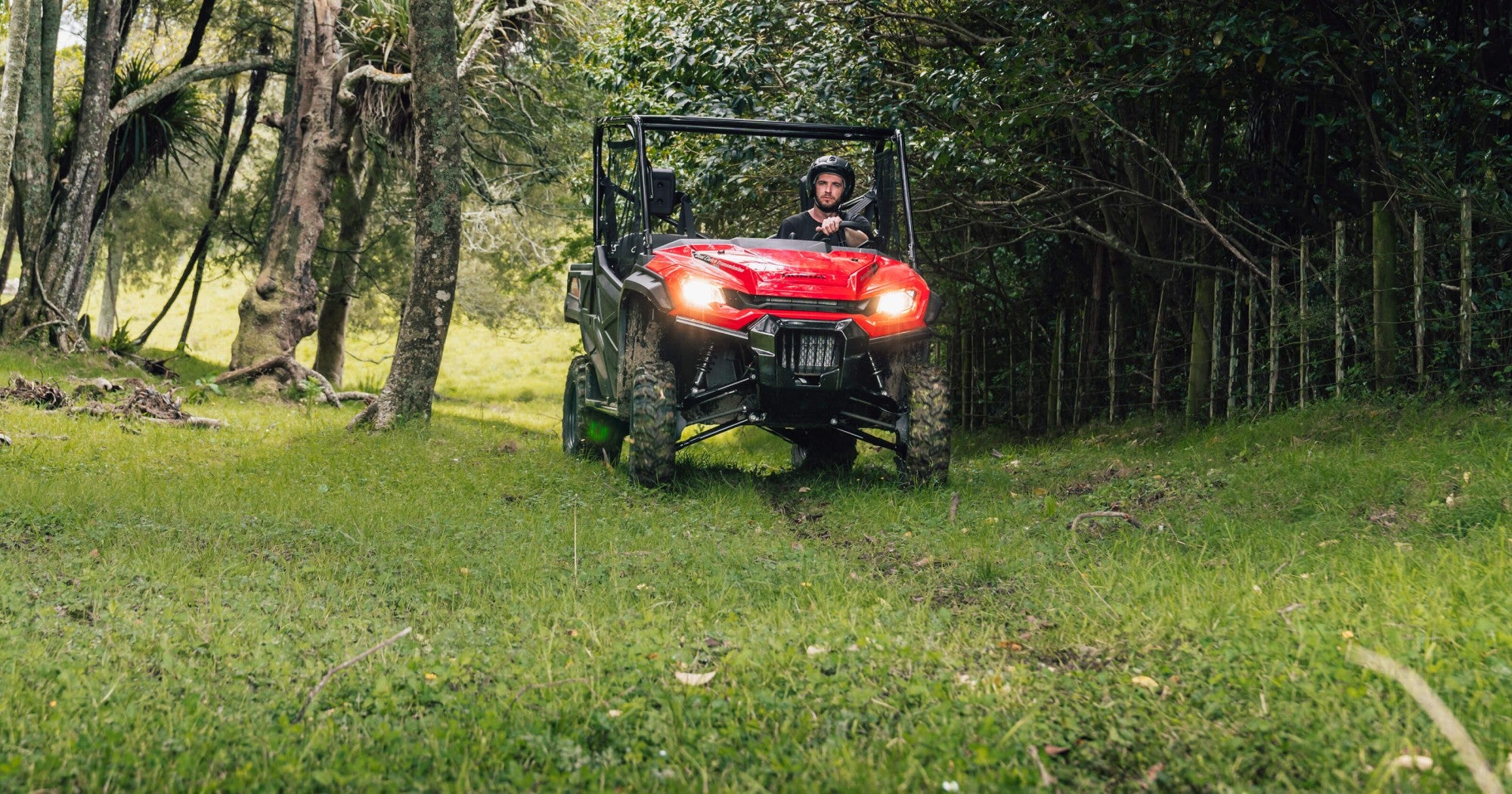

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility, and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres.

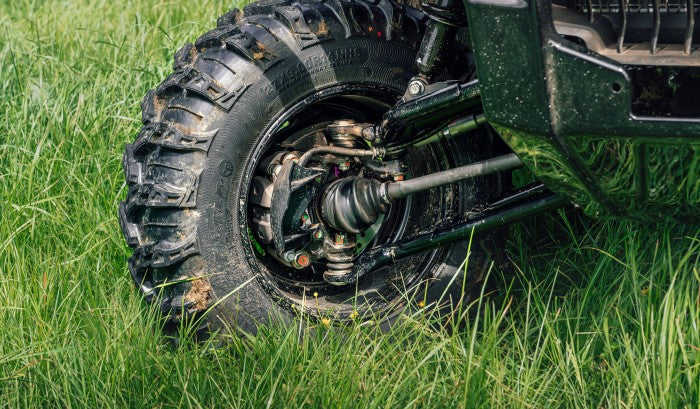

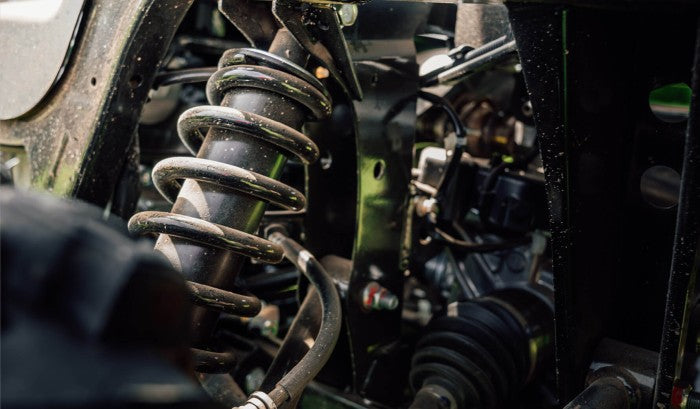

Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces.
And let's remember: this is a Honda, a name that's long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.
The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility, and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres.
Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces.
And let's remember: this is a Honda, a name that's long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.
Engine
| Engine Type | Longitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke |
| Engine Displacement | 999 cc |
| Bore and Stroke | 92.0 x 75.15mm |
| Compression Ratio | 10:1 |
| Ignition | Full-transistorized type with electronic advance |
| Fuel System | Programmed fuel injection (PGM-FI) - 44mm throttle body |
| Cylinders | 2 |
| Valves | 8 |
Transmission
| Starter | Electric |
| Gearbox | Steel Gears |
| Final Drive | Direct front and rear driveshafts |
| Transmission Type | 6-Speed Automatic Dual Clutch Transmission (DCT) |
| Drive Modes | TraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission |
Wheels, Suspension, Steering & Brakes
| Suspension Front | Independent double-wishbone |
| Front Wheel Travel | 267 mm |
| Suspension Rear | Independent double-wishbone |
| Rear Wheel Travel | 254 mm |
| Brakes Front | Dual hydraulic 210mm discs |
| Brakes Rear | Dual hydraulic 210mm discs |
| Tyres Size Front | 27 x 9 - 14 |
| Tyres Size Rear | 27 x 11 - 14 |

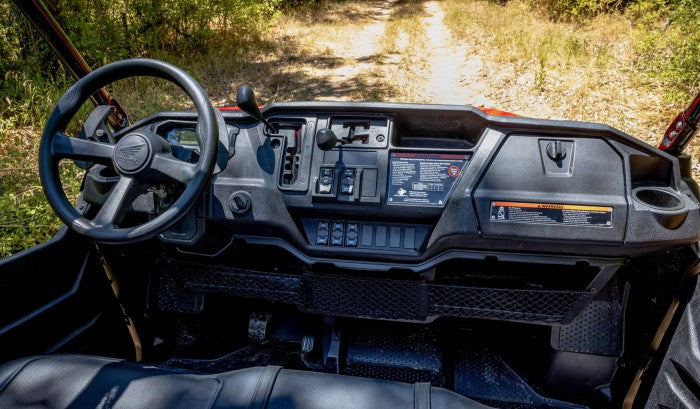

| Steering Type | Electric power steering with return to centre |
| Adjustable Steering | Tilting steering wheel |
Dimensions & Height
| Wheelbase | 2037 mm |
| Ground Clearance | 345 mm |
| Seating Capacity | 3 |
| Kerb Weight | 689 kg |
| Fuel Capacity | 29.9 litres (Including 6.4 litres reserve) |
| Length | 2974 mm |
| Width | 1600 mm |
| Height | 1953 mm |
| Towing Capacity | 1134 kg |
| Rear Carrier Capacity | 454 kg (With hydraulic assist lever (accessible from cab or outside)) |
