More Quality Time on the Water

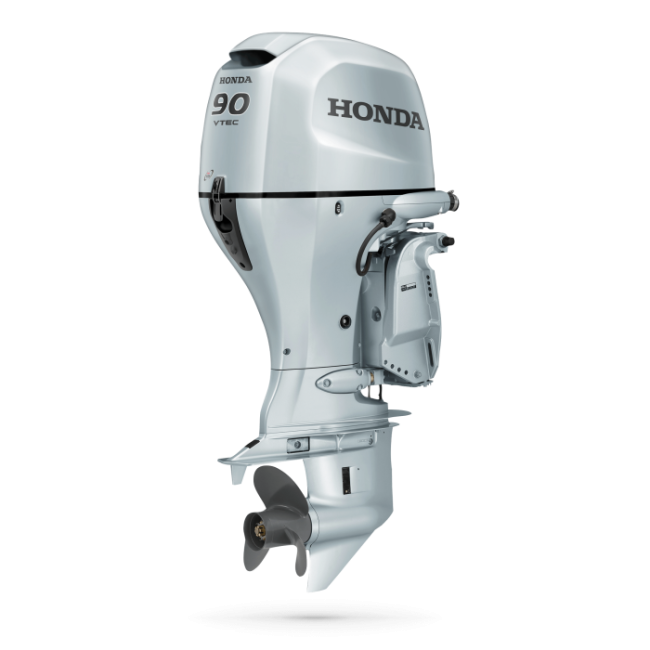

A lightweight powerhouse in a mid-range package. The BF90 hosts Hondas legendary racing technology including VTECTM to deliver optimum levels of performance and excellent fuel economy in one streamlined package. Allowing you to spend more quality time on the water.
The BF90 offers flexibility with a 20"or 25" shaft option and a 20" shaft tiller option.
- 4-Front Corrosion Protection: Hondas patented 4-Front corrosion paint process creates a tight barrier between the engine and environment. This double sealed, multi-layered process helps to keep your engine looking and performing like new.
- Engine Protection and Security: Alert systems monitor critical engine functions including engine temperature, oil pressure, fuel injection and charging, and will alert the boat user to abnormal operating conditions.
- Low Vibrations & Noise: The bottom mounted flywheel means less vibration and noise, providing you with quiet, smooth running.
- Plug and Play with NMEA2000 Compliance: NMEA2000 compliant, this outboard allows simplified connectivity with NMEA2000 electronic equipment such as sonars/fish finders, chart plotters and other devices via CANbus network technology.
- Trolling Control - Optional: Engine speed can be controlled in increments of 50 RPM from idle speed to 1000 RPM/1100 RPM (model dependent). With optional remote through your authorised Honda Marine dealer.
- Runs on 91: The Honda range runs on unleaded, ideal for refueling at offshore stations which only have 91, while also saving you at the pump.
Variable Valve Timing & Lift Electronic Control (VTEC)
The VTECTM system, which optimises power and efficiency at all engine speeds, was born out of Hondas passion for racing. VTEC varies the lift and duration of the intake valves to provide optimum performance at both low and high RPMs. VTEC delivers smooth stable idling at low speeds, while increasing valve lift at higher speeds, which broadens the torque curve and top end power.
Boosted Low Speed Torque (BLAST)
Hondas revolutionary BLASTTM technology provides strong hole shot performance, getting the hull on the plane quicker. This air/fuel ratio and ignition-timing technology boosts engine torque at low RPM under rapid acceleration conditions. Its NMEA compatible, meaning all engine data can be displayed on the GPS screen.
Specifications
ENGINE
Engine Type: 4-Stroke SOHC
Displacement: 1496 cc
Cylinders: 4
Valves: 16
Valves Per Cylinder: 4
Bore & Stroke: 73 mm x 89.4 mm
Full Throttle RPM Range: 5,300 - 6,300
HP Rating @ Propshaft: 90HP @ 5,800RPM
Fuel Delivery: Programmed Fuel Injection
Ignition System: Full-transition Battery Ignition
Starting System: Electric
Cooling System: Water cooled
Alternator Output: 44 AMP
Battery Charging Capacity: 35 AMP
DIMENSIONS
Recommended Transom Height: 508 mm/20 inches
Dry Weight: 163 kg
DRIVE
Gear Ratio: 2.33:1
Gear Shift: F-N-R
Propellor: Sold separately
FEATURES
NMEA 2000: Yes
ECOmo: Yes
Trolling Control: Optional
An Unrivalled Warranty
Every Honda Marine outboard comes with an unmatched 7-year* domestic (recreational) warranty. You can relax knowing that you're covered by the best warranty in the business! Honda Marine outboards are the toughest on the NZ market and are backed by our industry leading 3-year* (or 1000 engine hour) commercial warranty.
