Responsive Power in a Portable Package

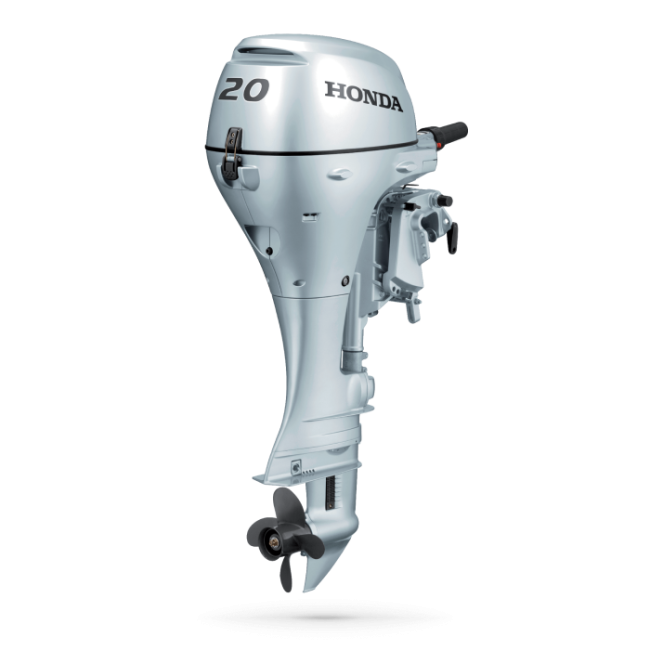

The BF20 is a top performer, providing optimum torque at any speed with a high output 350cc displacement and long-stroke design. Programmed Ignition (PGM-IG) accurately controls ignition timing during start-up and across the rev range for optimum overall operation.

Thanks to its incredibly lightweight design, the BF20 is very easy to transport. The foldaway handle is perfectly positioned at the balance point to make it easy to carry in a level position. The 12 Amp electric start (6 Amp recoil start) alternators ensure excellent charging power keeps batteries in top condition.

• Reverse Exhaust Relief: Exhaust gases are diverted away from the propeller while in reverse, allowing the propeller to run in clean water. Delivering instant reverse response and much finer control.
• Power Tilt Option: The BF20 is equipped with Power Tilt and Gas Assist Tilt variations perfect for effortless engine tilt operations and shallow-water running.
• Engine Protection and Security: Alert systems monitor critical engine functions including engine temperature and oil pressure to prevent engine damage.
• Low Vibration Mounting System: Honda's rubber mounts provide smoother operation at all speeds, with reduced vibration and noise.
• PGM Ignition: A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall operation.
• High Output Charging: The large 12 Amp (at 3000 RPM) alternator delivers more power to maintain the battery charge and keep electronics going even at trolling speeds.

Honda Exclusive Technology
As with all Honda outboards, the BF20 boasts all the benefits of Honda's advanced four-stroke technology, like unparalleled easy starting, quiet operation and low emissions. Offering low fuel consumption and maintenance costs, in addition to the performance and durability for which Honda is renowned.

Long Tiller Handle and Up-Front Tiller Controls
The convenient longer tiller handle provides increased control and reduced steering effort. The extended handle is made of a new lightweight composite for increased durability and weight reduction. The convenient Forward Mount Shift Lever allows fingertip shifting. Twist Grip Throttle and Tensioner allows for superior throttle friction control, minimising driver fatigue.

Specifications

ENGINE
Engine Type: 4-stroke OHC
Displacement: 350 cc
Cylinders: 2
Valves: 4
Valves Per Cylinder: 2
Bore & Stroke: 59 mm x 64 mm
Full Throttle RPM Range: 5000 - 6000
HP Rating @ Propshaft: 20HP @ 5500 RPM
Fuel Delivery: Carburettor
Ignition System: PGM IG
Starting System: Recoil or Recoil / Electric
Cooling System: Water cooled
Alternator Output: 12 AMP
Battery Charging Capacity: 6 AMP

DIMENSIONS
Recommended Transom Height: X 635 /XX 762
Dry Weight: 46.5 kg

DRIVE
Gear Ratio: 2.1:1
Gear Shift: F-N-R
Propellor: 4 Blade Aluminium 9 1/4 x 10

An Unrivalled Warranty
Every Honda Marine outboard comes with an unmatched 7-year* domestic (recreational) warranty. You can relax knowing that you're covered by the best warranty in the business! Honda Marine outboards are the toughest on the NZ market and are backed by our industry leading 3-year* (or 1000 engine hour) commercial warranty.
