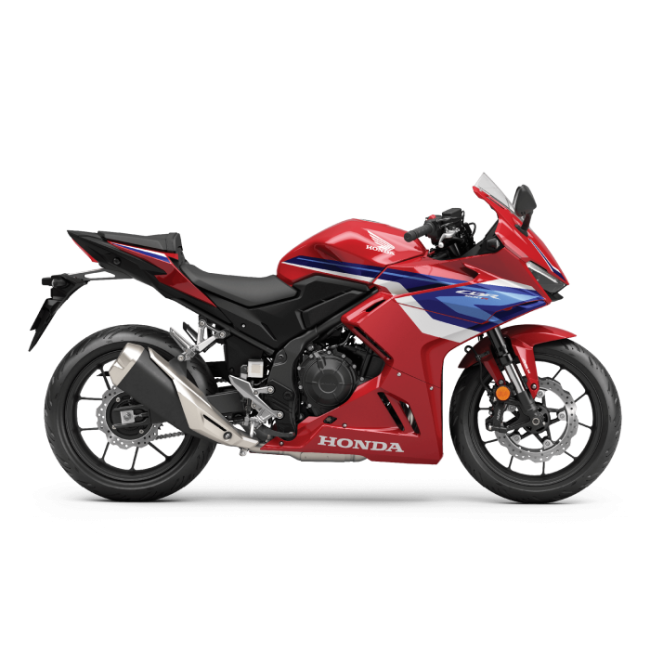

Honda CBR500R

Honda CBR500R

Honda CBR500R

Grand Prix Red / Manual
$13,195.00
$13,195.00
Skip to product information
Honda CBR500R
1/3
  • Honda CBR500R

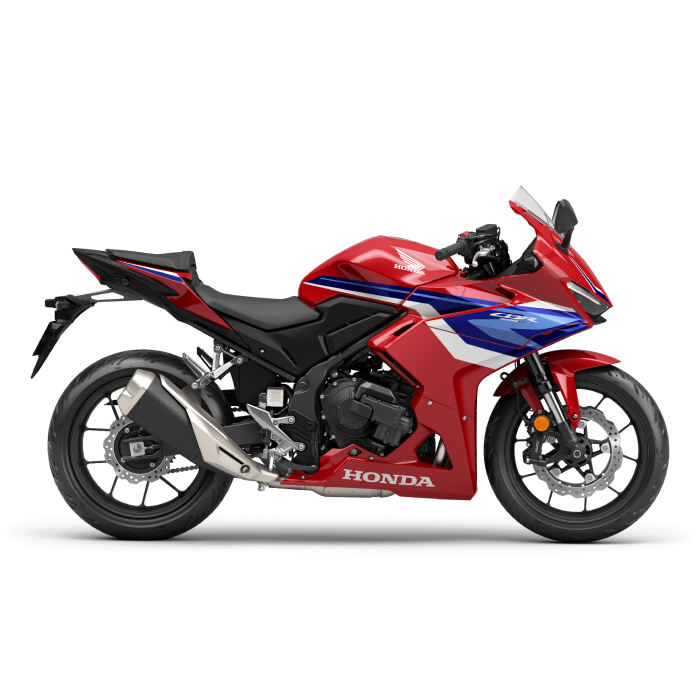

  • 7243--sport-clear-cuts-2026-cbr500r-e-clutch-red-2000-x-2000.png

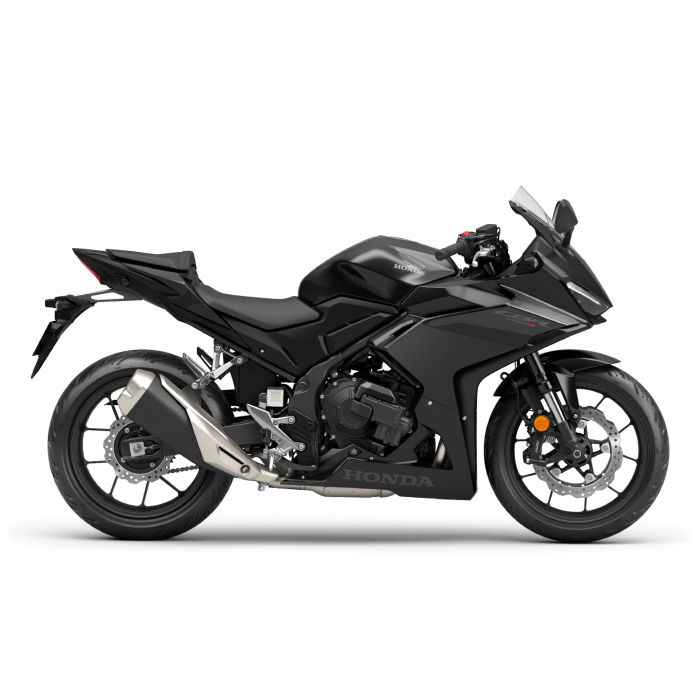

  • 7244--sport-clear-cuts-2026-cbr500r-e-clutch-black-2000-x-2000.png
Honda CBR500R

Honda CBR500R
$13,195.00
$13,195.00

Call or email our experts to discuss your requirements
Call us now
Email us

Description

What HRC learns racing at the top feeds straight back. And the CBR500R is where it starts. Fireblade style, with aerodynamic fairing winglets. A strong twin-cylinder engine with ECU settings optimised for acceleration. E-Clutch delivers smooth, clutch-free shifting for added performance. The chassis features Showa USD forks and twin radial-mount calipers. A TFT display and HSTC grip control brings tech into the mix. City, back road or racetrack – this one’s built for fun.

What HRC learns racing at the top feeds straight back. And the CBR500R is where it starts. Fireblade style, with aerodynamic fairing winglets. A strong twin-cylinder engine with ECU settings optimised for acceleration. E-Clutch delivers smooth, clutch-free shifting for added performance. The chassis features Showa USD forks and twin radial-mount calipers. A TFT display and HSTC grip control brings tech into the mix. City, back road or racetrack – this one’s built for fun.

Engine

Engine TypeLiquid-cooled DOHC parallel-twin 4-stroke
Engine Displacement471 cc
Bore and Stroke67mm x 66.8mm
Compression Ratio10.7:1
IgnitionFull-transistorized type
Fuel SystemProgrammed fuel injection (PGM-FI) - 34mm throttle body
Cylinders2
Valves8

Transmission

StarterElectric
Final DriveChain
Transmission TypeManual 6-speed
ClutchWet multiplate, assist slipper

Wheels, Suspension, Steering & Brakes

Suspension Front41mm Showa inverted separate function fork (SFF)
Suspension RearPro-Link mono shock with steel square swingarm and 5 stage preload adjustability
Brakes FrontDual 320mm disc with 2-piston caliper
Brakes RearSingle 240mm disc with 1-piston caliper
Tyres Size Front120 / 70 - 17
Tyres Size Rear160 / 60 - 17
Rake Caster Angle25.5 degrees

Dimensions & Height

Wheelbase1410 mm
Ground Clearance130 mm
Seat Height785 mm
Trail102 mm
Kerb Weight191 kg
Fuel Capacity17.1 litres
Length2080 mm
Width755 mm
Height1145 mm
Minimum Turning Radius2.9 m

Instruments & Electronics

Instruments5-inch colour TFT display
HeadlightLED
Tail LightLED
Security SystemHISS
LAMS ApprovedYes

Aggressive Supersport Style

Want a slice of CBR1000RR-R Fireblade design and aerodynamic winglets? Find it right here. The CBR500R takes inspiration from big brother with new headlights, fairing and taillight.

Aggressive Supersport Style

Want a slice of CBR1000RR-R Fireblade design and aerodynamic winglets? Find it right here. The CBR500R takes inspiration from big brother with new headlights, fairing and taillight.

Enjoy sports bike-spec quality. The front suspension is made of Showa 41mm Separate Function Fork Big Piston (SFF-BP) inverted forks with adjustable preload. At the rear you get a Pro-Link® set up with adjustable preload. This combination gives you superior reaction and ride quality

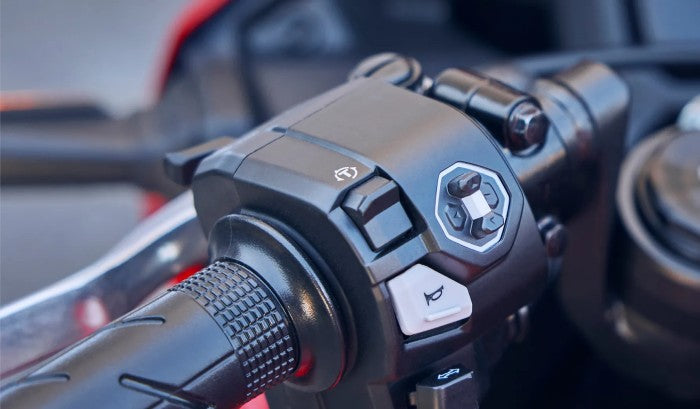

HSTC smoothly manages rear wheel traction, wet or dry, so riding the street – or carving an apex – is always a thrill.

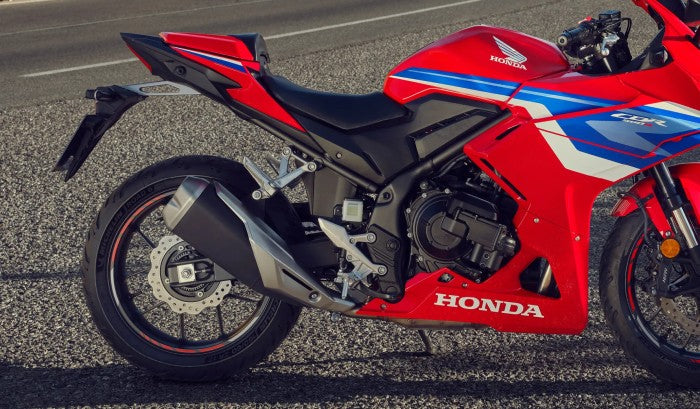

Light and strong, the steel diamond-tube frame gives you plenty of feedback as road surfaces change. The shape and position of the engine mounts combined with the frame’s rigidity balance keep vibration to a minimum.
