Honda NX500 Motorcycle

Honda NX500 Motorcycle

Honda NX500 Motorcycle

Pearl Horizon White / Manual
$13,595.00
$13,595.00
Skip to product information
Honda NX500 Motorcycle
1/4
  • Honda NX500 Motorcycle
  • 7245--adventure-clear-cuts-2026-nx500-e-clutch-blue-black-2000-x-2000.png
  • 7246--adventure-clear-cuts-2026-nx500-e-clutch-black-2000-x-2000.png
  • 7247--adventure-clear-cuts-2026-nx500-e-clutch-white-2000-x-2000.png
Honda NX500 Motorcycle

Honda NX500 Motorcycle
$13,595.00
$13,595.00

Call or email our experts to discuss your requirements
Call us now
Email us

Description

Where to? Your choice. The compact, versatile new NX500 offers perfect city agility and off-road ability. It’s comfortable too, with an aggressive, rally-style fairing and large screen shaped for wind protection. E-Clutch adds smooth, clutch-free shifting for effortless control. High specification technology includes 5-inch TFT screen. And its LAMS approved twin-cylinder engine delivers flexible, enjoyable performance with HSTC traction management. The adventure begins.

Where to? Your choice. The compact, versatile new NX500 offers perfect city agility and off-road ability. It’s comfortable too, with an aggressive, rally-style fairing and large screen shaped for wind protection. E-Clutch adds smooth, clutch-free shifting for effortless control. High specification technology includes 5-inch TFT screen. And its LAMS approved twin-cylinder engine delivers flexible, enjoyable performance with HSTC traction management. The adventure begins.

Engine

Engine TypeLiquid cooled DOHC parallel twin 4-stroke
Engine Displacement471 cc
Bore and Stroke67mm x 66.8mm
Compression Ratio10.7:1
IgnitionFull-transistorized type
Fuel SystemProgrammed fuel injection (PGM-FI) - 34mm throttle body
Cylinders2

Transmission

StarterElectric
Final DriveChain
Transmission TypeManual 6-speed
ClutchWet multiplate, Assisted slipper clutch

Wheels, Suspension, Steering & Brakes

Suspension FrontShowa 41mm SFF-BP USD forks
Suspension RearPro-Link mono with 5 stage pre-load adjuster, Steel hollow cross swingarm
Brakes FrontDual 296mm disc with two piston calipers
Brakes RearSinge 240mm disc with single piston caliper
Tyres Size Front110 / 80 - 19
Tyres Size Rear160 / 60 - 17
Rake Caster Angle27.5 degrees

Dimensions & Height

Wheelbase1445 mm
Ground Clearance180 mm
Seat Height830 mm
Trail108 mm
Kerb Weight196 kg
Fuel Capacity17.5 litres
Length2165 mm
Width830 mm
Height1415 mm
Minimum Turning Radius2.4 m

Instruments & Electronics

Instruments5-inch TFT display
HeadlightLED
Tail LightLED
Security SystemHISS
Emergency Stop SignalYes
LAMS ApprovedYes

Long Travel Suspension

Front suspension is made of Showa 41mm Separate Function Fork Big Piston (SFF-BP) inverted forks, set for precise reaction and feel. The Pro-Link® rear suspension, with adjustable preload, gives you a comfortable ride over bumps, with superior riding comfort and handling.

Long Travel Suspension

Front suspension is made of Showa 41mm Separate Function Fork Big Piston (SFF-BP) inverted forks, set for precise reaction and feel. The Pro-Link® rear suspension, with adjustable preload, gives you a comfortable ride over bumps, with superior riding comfort and handling.

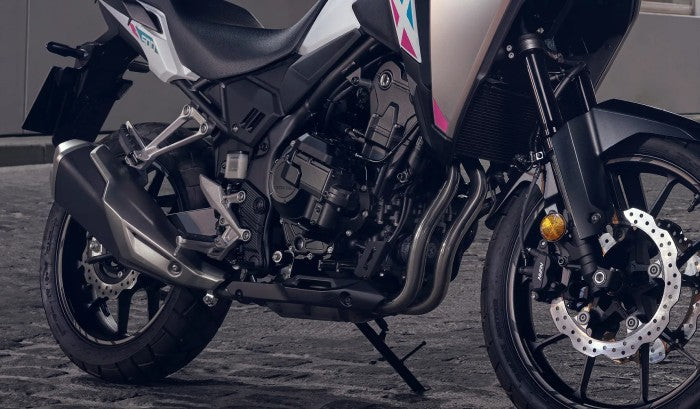

The light and narrow 471cc parallel cylinder engine offers plenty of power and torque off the bottom and in the midrange, striking the perfect balance of what a mid-sized motorcycle engine should be. PGM-FI continuously ensures the correct fuel mixture is delivered for the conditions, giving you crisp throttle response all riders can enjoy on, and off road.

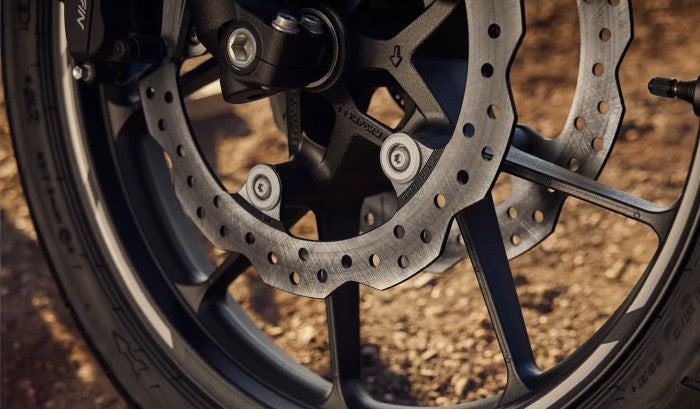

Dual front and single rear disc brakes, combined with standard Anti-lock Braking System (ABS) helps you make smoother, more controlled stops under less-than-ideal riding conditions.


On the road, HSTC manages rear wheel traction in all conditions, especially the rain. On dirt or gravel it can be switched off completely, for maximum drive.
