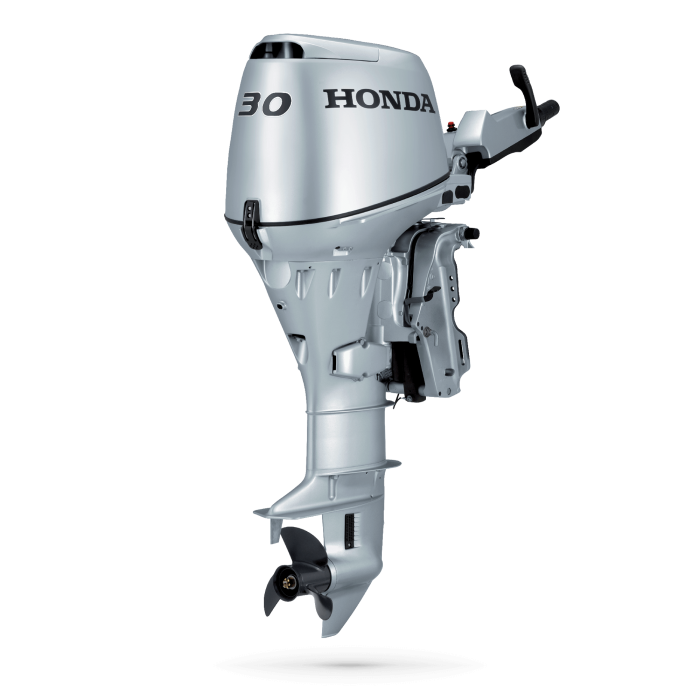

The Strong, Quiet Type
Responsive, smooth, quiet, and reliable power in a lightweight design. This versatile three-cylinder combines Hondas world renowned reliability, instant throttle response, and smooth, quiet operation to get on with the job so that you can enjoy the water, whatever the purpose of your trip.
With remote and tiller control options, the this 30hp outboard is the perfect choice to get you out on the water.
- Cool Running: A 3 inlet cooling system provides plenty of water to maintain optimum engine temperature in all conditions.
- Gas Assist Tilt: Gas Assist function makes it easy to tilt the engine for running in shallow water, or raise it completely out of the water for protection.
- Engine Protection and Security: Alert systems monitor critical engine functions including engine temperature and oil pressure to prevent engine damage.
- Low Vibrations Mounting System: Honda's rubber mounts provide smoother operation at all speeds, with reduced vibration and noise.
- Dual Action Power Trim: Get better hull manoeuvrability and performance with Hondas power trim and tilt models. Trim range is -4 to +12.
- Centre Mount Tiller: The BF30's tiller is ergonomically designed for exceptional comfortable control. Including optional remote control models.
Honda Exclusive Technology
The BF30 boasts all the benefits of Honda's advanced four-stroke technology, like unparalleled easy starting, quiet operation and low emissions. Offering low fuel consumption and maintenance costs, in addition to the performance and durability for which Honda is renowned.
The Formula for Power
A high-torque, three-cylinder 552cc 4-stroke engine delivers first-class power. It all adds up to solid, economical performance from this hard working, good looking 4-stroke engine. It has Programmed Ignition (PGM IG) and an auto enrichment system (choke). It is an automatic choke system which makes it a great and easy starter even from cold. Itll fire up those 552ccs, no problem at all.
Less of a drag
The gear case has a low drag coefficient and hydrodynamic shape. The gears within are machined to ultra-fine tolerances reducing friction and contributing to the superb performance and fuel economy.
Specifications
ENGINE
Engine Type: 4-Stroke OHV
Displacement: 552 cc
Cylinders: 3
Valves: 6
Valves Per Cylinder: 2
Bore & Stroke: 61 mm x 63 mm
Full Throttle RPM Range: 5000 - 6000
HP Rating @ Propshaft: 30HP @ 6000 RPM
Fuel Delivery: 3 Carburettors
Ignition System: PGM IG
Starting System: Electric / Recoil
Cooling System: Water cooled
Battery Charging Capacity: 10 AMP
DIMENSIONS
Recommended Transom Height: 15" & 20"
Dry Weight: 72.5 kg
DRIVE
Gear Ratio: 2.08:1
Gear Shift: F-N-R
Propellor: 3 Blade Aluminium 9 1/4 x 12
An Unrivalled Warranty
Every Honda Marine outboard comes with an unmatched 7-year* domestic (recreational) warranty. You can relax knowing that you're covered by the best warranty in the business! Honda Marine outboards are the toughest on the NZ market and are backed by our industry leading 3-year* (or 1000 engine hour) commercial warranty.
