Dependable Compact Performance

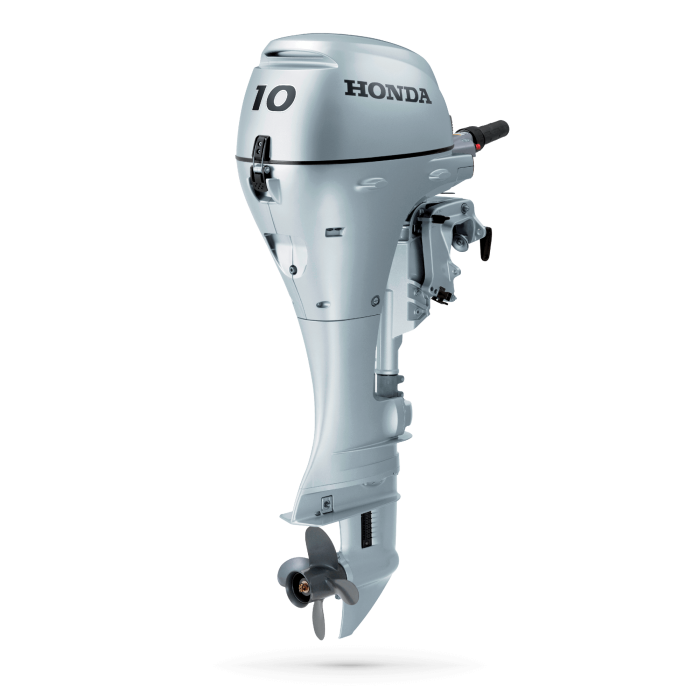

Dependable performance in a compact engine. Trust the BF10. Offering very low fuel consumption and maintenance costs, while delivering optimum performance and reliability. At just 42kg, the BF10 is one of the lightest four-stroke engines in its class. A foldaway handle perfectly situated at the balance point of the engine means easy transportation in a level position.
The BF10 is perfect for sailboats, inflatables and small aluminium boats.
- Reverse Exhaust Relief: Exhaust gases are diverted away from the propeller while in reverse, allowing the propeller to run in clean water. Delivering instant reverse response and much finer control.
- Fresh Water Flushing: The Fresh Water Flush point flushes debris and saltwater out of the engine, extending the life of the outboard.
- Engine Protection and Security: Alert systems monitor critical engine functions including engine temperature and oil pressure, to prevent engine damage.
- Low Vibration Mounting System: Honda's rubber mounts provide smoother operation at all speeds, with reduced vibration and noise.
- High Output Charging: The large 12 Amp on the electric start model (or 6 Amps on manual start) alternator delivers more power to maintain the battery charge and keep electronics going even at trolling speeds.
- Foldaway Handle: The convenient foldaway handle positioned at the exact balance point of each engine makes it easy to carry the outboard in a level position.
Honda Exclusive Technology
As with all Honda outboards, the BF10 boasts all the benefits of Honda's advanced four-stroke technology, like unparalleled easy starting, quiet operation and low emissions. Offering low fuel consumption and maintenance costs, in addition to the high performance and durability for which Honda is renowned.
Long Tiller Handle and Up-Front Tiller Controls
The BF10 has a convenient longer tiller handle for increased control and reduced steering effort. Made of a new lightweight composite for increased durability and weight reduction. The convenient Forward Mount Shift Lever allows fingertip shifting. Twist Grip Throttle and Tensioner allows for superior throttle friction control, minimising driver fatigue.
Specifications
ENGINE
Engine Type: 4-stroke OHC
Displacement: 222 cc
Cylinders: 2
Valves: 4
Valves Per Cylinder: 2
Bore & Stroke: 58 x 42 mm
Full Throttle RPM Range: 5,000 - 6,000
HP Rating @ Propshaft: 10HP @ 5,800RPM
Fuel Delivery: Carburettor
Ignition System: Electronic PGM. IG
Starting System: Electric/Recoil
Cooling System: Water cooled
Alternator Output: 12 AMP
Battery Charging Capacity: 6 AMP
DIMENSIONS
Recommended Transom Height: 15 20"
Dry Weight: 42 kg
DRIVE
Gear Ratio: 2.33:1
Gear Shift: F-N-R
Propellor: Four-Blade Aluminium
An Unrivalled Warranty
Every Honda Marine outboard comes with an unmatched 7-year* domestic (recreational) warranty. You can relax knowing that you're covered by the best warranty in the business! Honda Marine outboards are the toughest on the NZ market and are backed by our industry leading 3-year* (or 1000 engine hour) commercial warranty.
